Bogner Amplification - Pedals |
| Pedals with Rupert Neve Designs Transformer |
| Product |
Details |

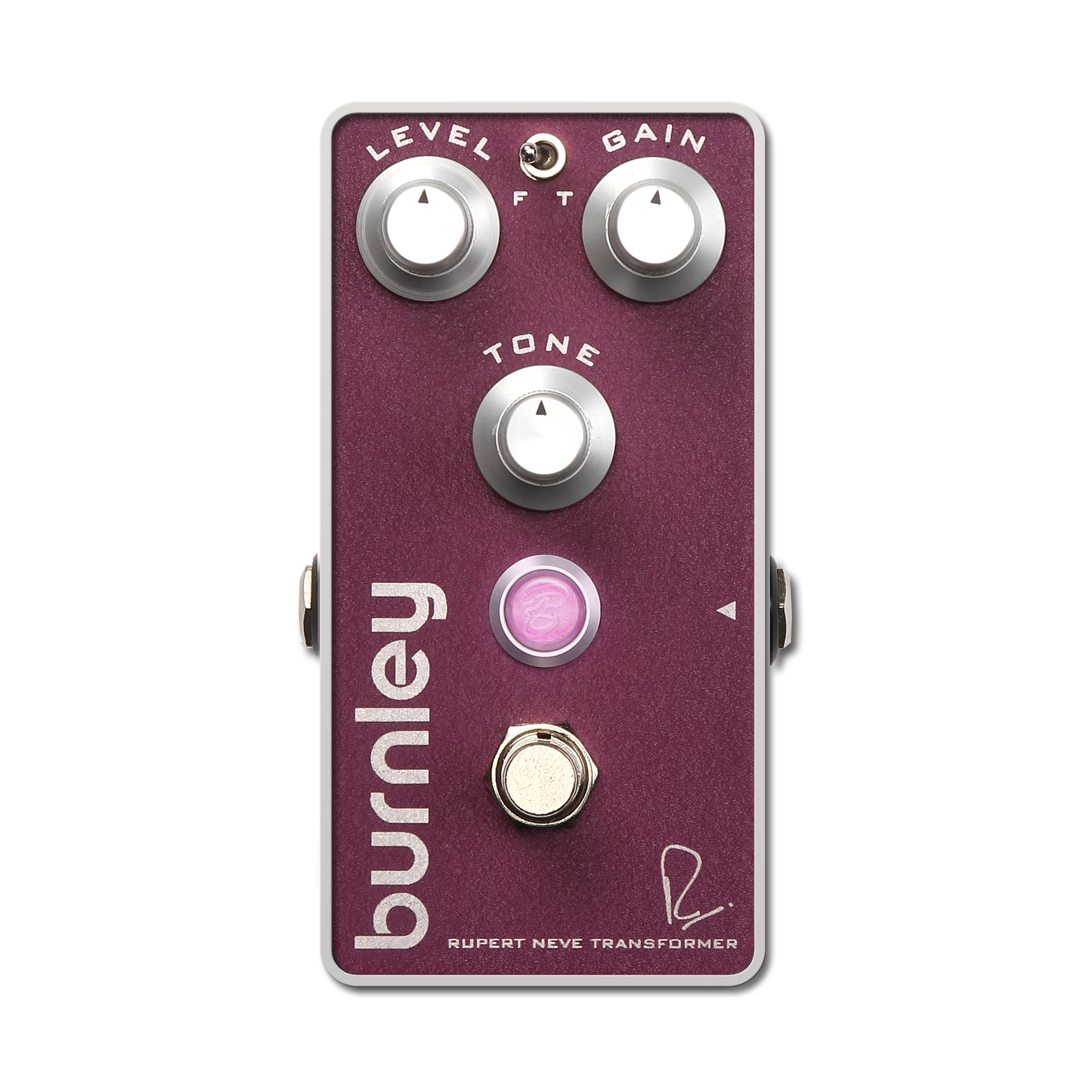

| BP-BURNLEY |
Bogner Burnley Distortion Pedal |
|
The Burnley is a distortion pedal with a 100% analog circuit which delivers hot crunch to high-gain annihilation - with added tonal magnitude -
thanks to a custom transformer designed by legendary audio pioneer Mr Rupert Neve.
Flip the Fat/Tight switch, twist the gain, tone and level controls and transform your mortal guitar tone into fire-breathing pandemonium.
Features:
True bypass
Controls: level, gain and tone
F/T Switch: selects between tight and aggressive or fat and mellow tones
Interactive Jewel light reacts to your playing dynamics
Rupert Neve Designs audio transformer
Jacks: input, output
9VDC power-connector, 50mA or more
|

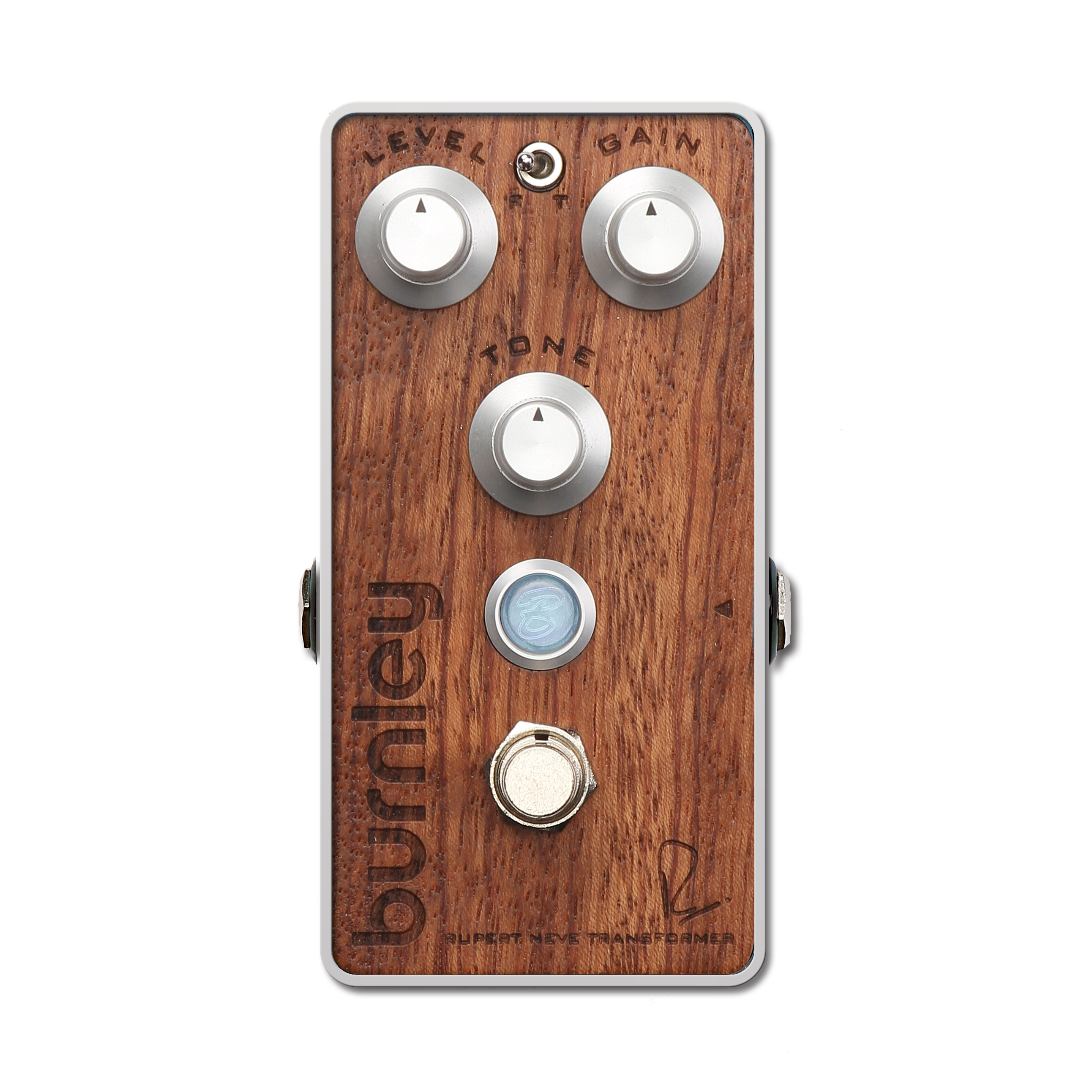

| BP-BURNLEY BWF |
Bogner Burnley Distortion Pedal Bubinga Wood finish |
|
The Burnley is a distortion pedal with a 100% analog circuit which delivers hot crunch to high-gain annihilation - with added tonal magnitude -
thanks to a custom transformer designed by legendary audio pioneer Mr Rupert Neve.
Flip the Fat/Tight switch, twist the gain, tone and level controls and transform your mortal guitar tone into fire-breathing pandemonium.
Features:
True bypass
Controls: level, gain and tone
F/T Switch: selects between tight and aggressive or fat and mellow tones
Interactive Jewel light reacts to your playing dynamics
Rupert Neve Designs audio transformer
Jacks: input, output
9VDC power-connector, 50mA or more
Studio Series:
Bubinga exotic hardwood top panel
Hand formed, - sanded, - layered and - finished
Look and feel of the vintage mixing consoles from the 60's
|

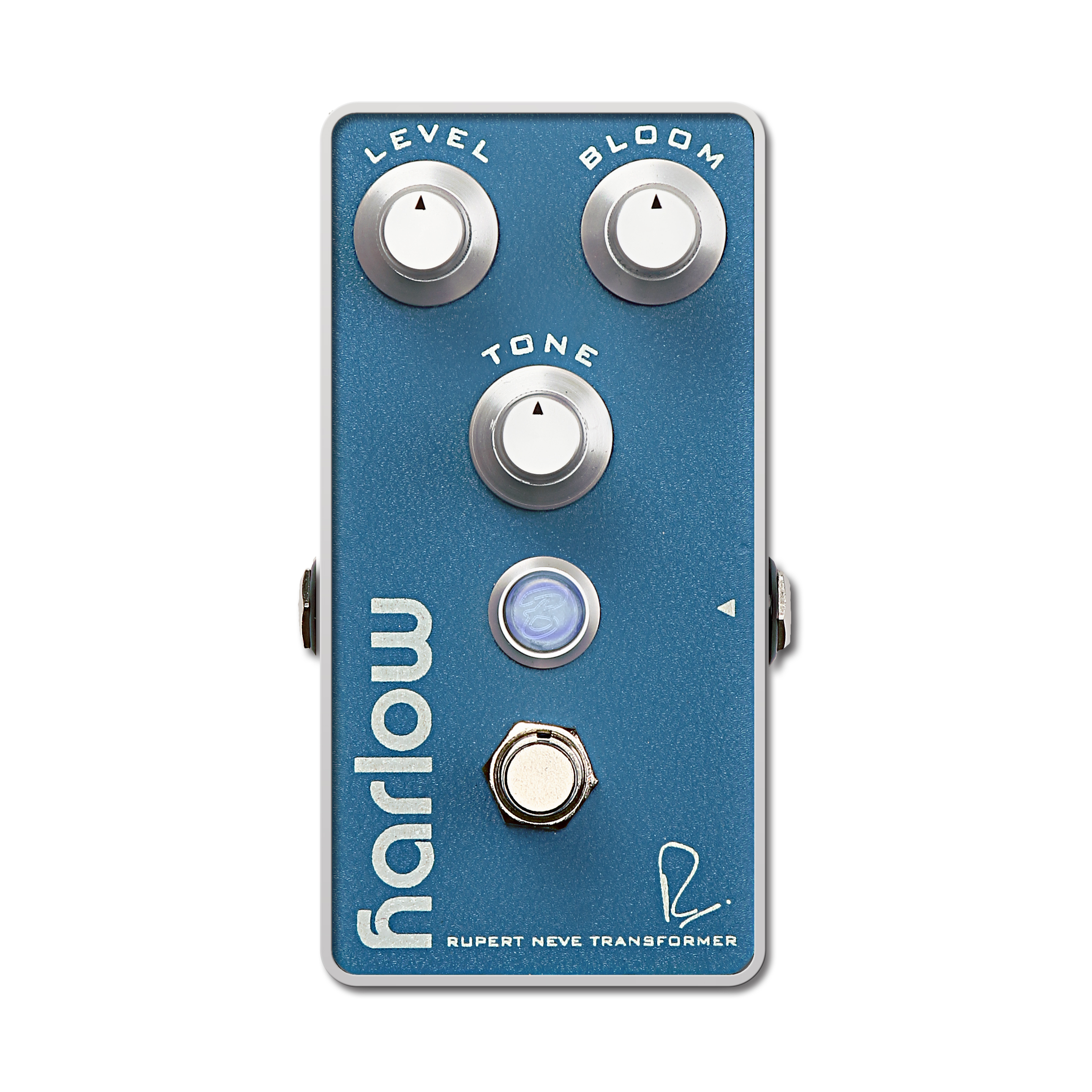

| BP-HARLOW |
Bogner Harlow Boost with Bloom Pedal |
|
The Bogner Harlow is a unique boost pedal with a ''Bloom'' compression feature, which serves up dynamic three-dimensional punch and tastefully transparent squeeze.
The 100% analog circuit delivers a wide range of boost - from crystal-clear light boost to a thick and meaty high-output assault on your amp’s input section - you’ll never
want to turn it off. At the heart of the Harlow is a custom audio transformer created by legendary audio pioneer Mr. Rupert Neve.
Features:
True bypass
Controls: level, tone and bloom (controls compression)
Interactive Jewel light reacts to your playing dynamics
Rupert Neve Designs audio transformer
Jacks: input, output
9VDC power-connector, 50mA or more
|
| BP-HARLOW BWF |
Bogner Harlow Boost with bloom pedal Bubinga Wood Finish |
|
The Bogner Harlow is a unique boost pedal with a ''Bloom'' compression feature, which serves up dynamic three-dimensional punch and tastefully transparent squeeze.
The 100% analog circuit delivers a wide range of boost - from crystal-clear light boost to a thick and meaty high-output assault on your amp’s input section - you’ll never
want to turn it off. At the heart of the Harlow is a custom audio transformer created by legendary audio pioneer Mr. Rupert Neve.
Features:
True bypass
Controls: level, tone and bloom (controls compression)
Interactive Jewel light reacts to your playing dynamics
Rupert Neve Designs audio transformer
Jacks: input, output
9VDC power-connector, 50mA or more
Studio Series:
Bubinga exotic hardwood top panel
Hand formed, - sanded, - layered and - finished
Look and feel of the vintage mixing consoles from the 60's
|

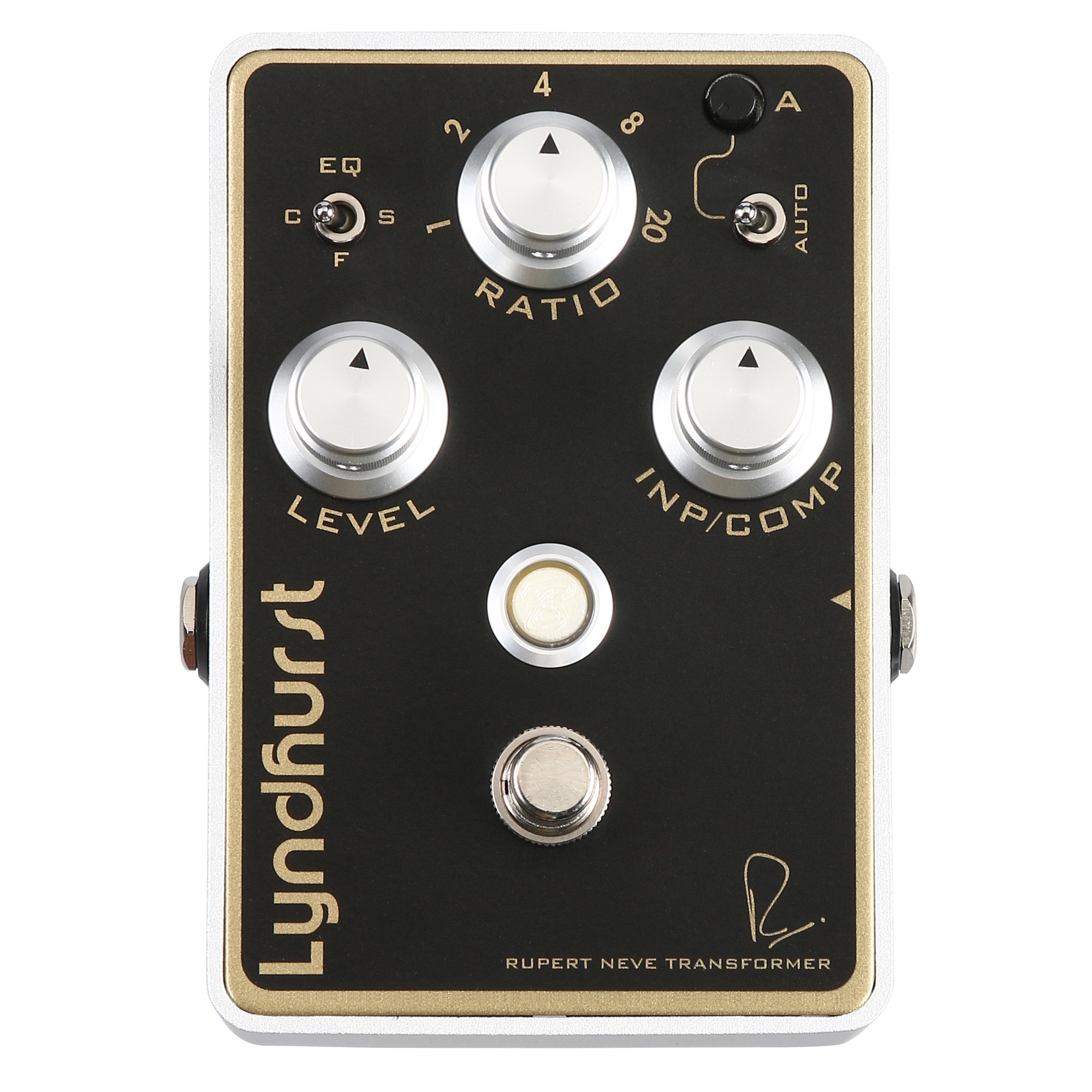

| BP-LYNDHURST |
Bogner Pedals - Lyndhurst - Compressor - Rupert Neve Transformer |
|
The Lyndhurst compressor combines the best of both worlds, state of the art precision VCA technology usually only found in expensive outboard gear and a high current driven Rupert
Neve Designs audio transformer for a 3D Sonic Image quality rich in harmonics with added vintage warms just like we love them from the classic recording.
The adjustable studio grade input pre-amplifier works as an interface between the instrument and the compressor section, the Inp/Comp control will make it easy to use the
Lyndhurst for a wide variety of applications.
With the instrument plugged directly into the Lyndhurst, the sensitive input stage brings out nuances and details of the instrument as well as your playing you might
never heard before.
Features:
True bypass
Master Controls: Level, Ratio and Inp/Comp (threshold)
3 position Eq switch
2 position switch for auto dynamic attack and release or adjustable attack time control
Jacks: input and output.
9VDC, negative tip, power supply connector or internal battery (power supply recommended)
Low Battery Indicators: LEDs blink when battery voltage drops below critical threshold.
Premium components include: Double sided gold plated circuit boards, German WIMA capacitors, Japanese Nichicon capacitors and gold plated relays, Carling switch and more
|

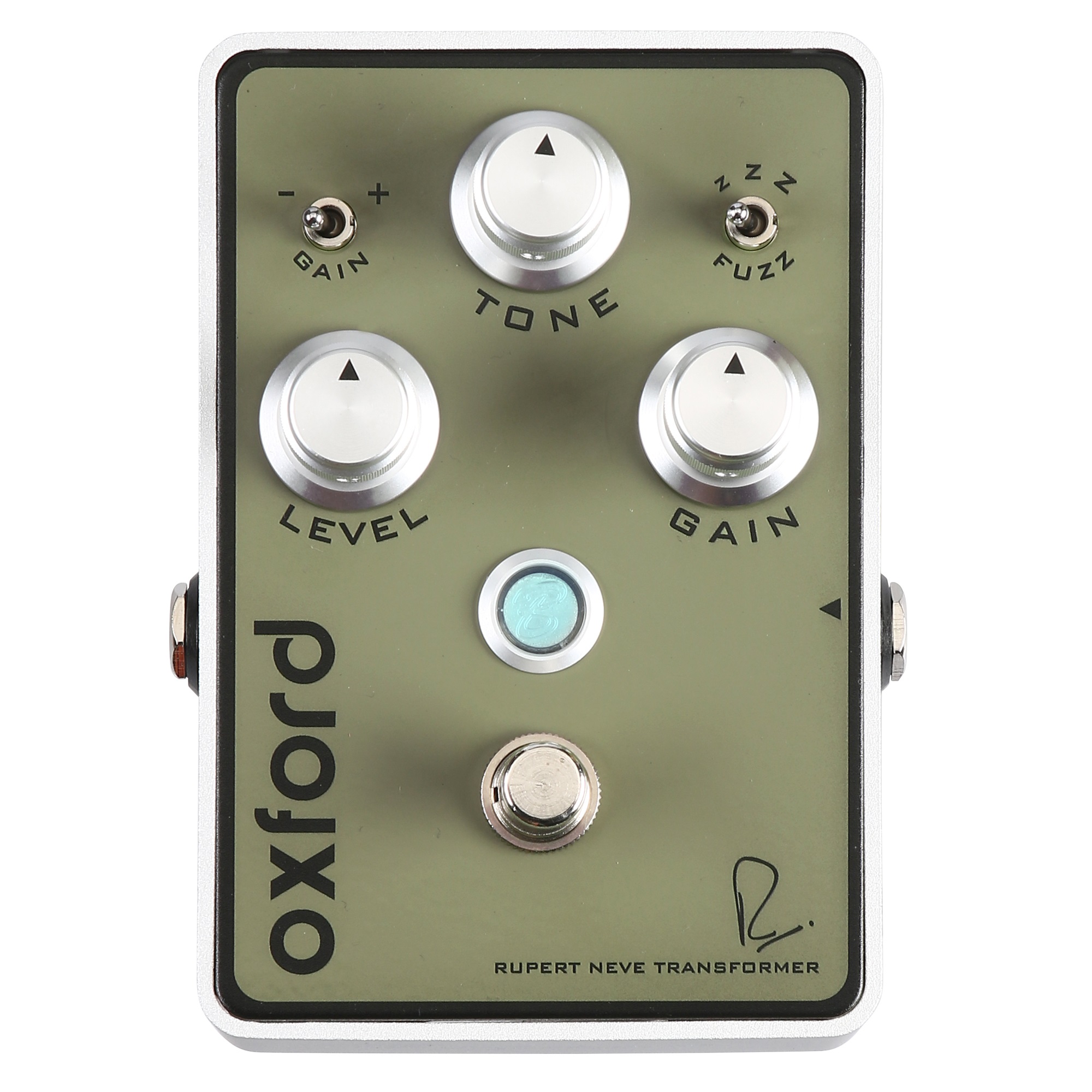

| BP-OXFORD |
Bogner Pedals - Oxford Fuzz - Rupert Neve Transformer |
|
The Oxford fuzz has an incredibly wide range of gain which delivers access to touch-sensitive overdrive, classic 60's style fuzz and over the top mayhem.
The Ferro Silicon (FeSi) Fuzz brings stable consistent organic rich fuzz tones which do not depend on temperature and temperamental transistors.
Two switches will give you six different combinations to run the Oxford for a variety of tones, including good dynamic fuzz tones at low volume.
Features:
True bypass
Rupert Neve Design audio transformer
Master Level, Tone and Gain
2 position gain switch
3 position fuzz mode switch
Jacks: input, output.
9VDC, negative tip, power supply connector or internal battery
Low Battery Indicators: LEDs blink when battery voltage drops below critical threshold.
Premium components include: Double sided gold plated circuit boards, German WIMA capacitors, Japanese Nichicon capacitors and gold plated relays, Carling switches and more
|

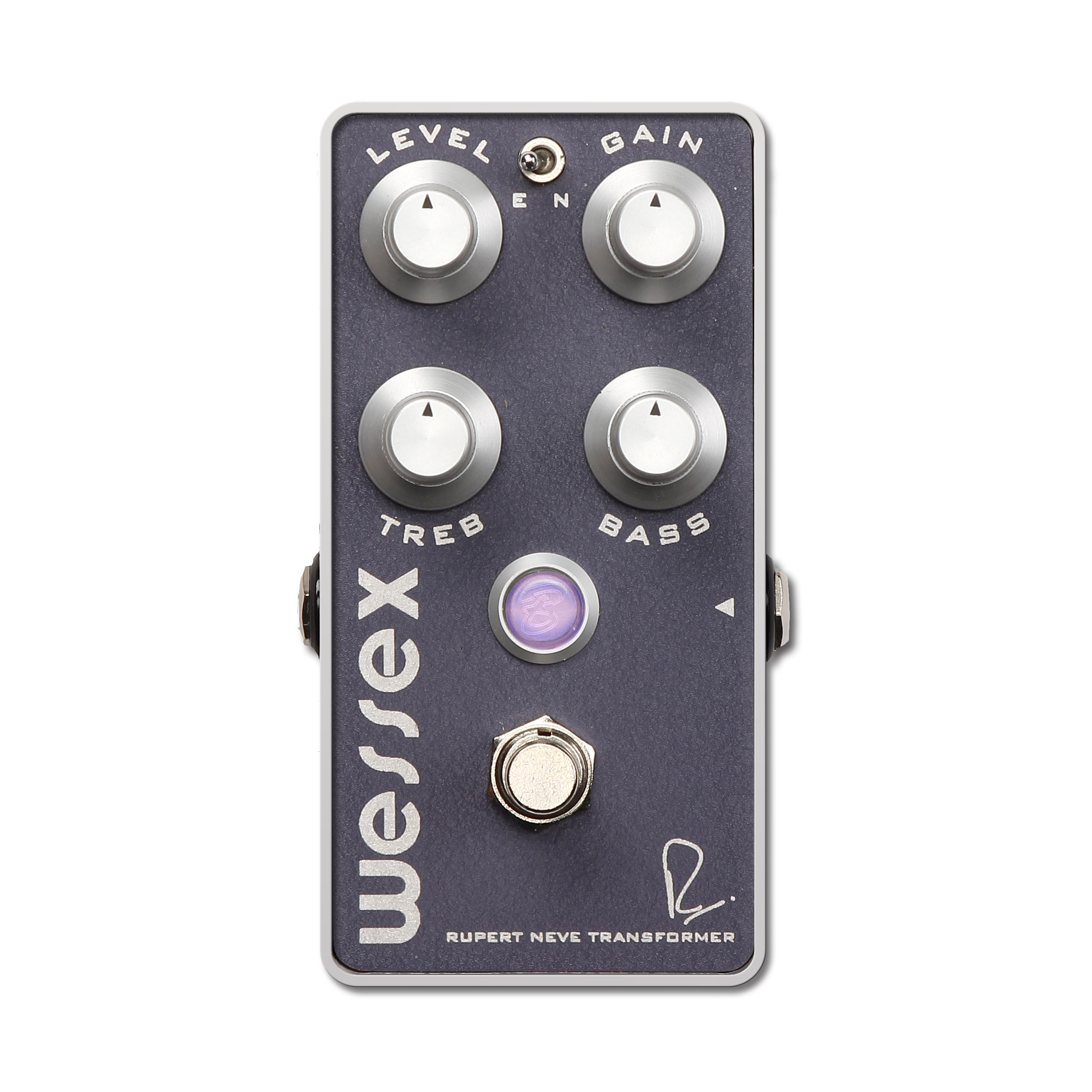

| BP-WESSEX |
Bogner Wessex Overdrive Pedal |
|
Delivering classic low gain growl to rich modern scorch, the Bogner Wessex overdrive pedal with its 100% analog circuit gets its extraordinary dimensional
range from a custom transformer designed by legendary audio pioneer Mr. Rupert Neve.
Whether you want to give your clean amp some muscle or juice up your vintage amp’s gain, flick the tone-altering Enhance/Neutral switch to find your
own dirty nirvana.
Features:
True bypass
Controls: level, gain, treble and bass
E/N switch: Selects between normal and enhanced mode (extended bass and sweet highs)
Interactive Jewel light reacts to your playing dynamics
Rupert Neve Designs audio transformer
Jacks: input, output
9VDC power-connector, 50mA or more
|

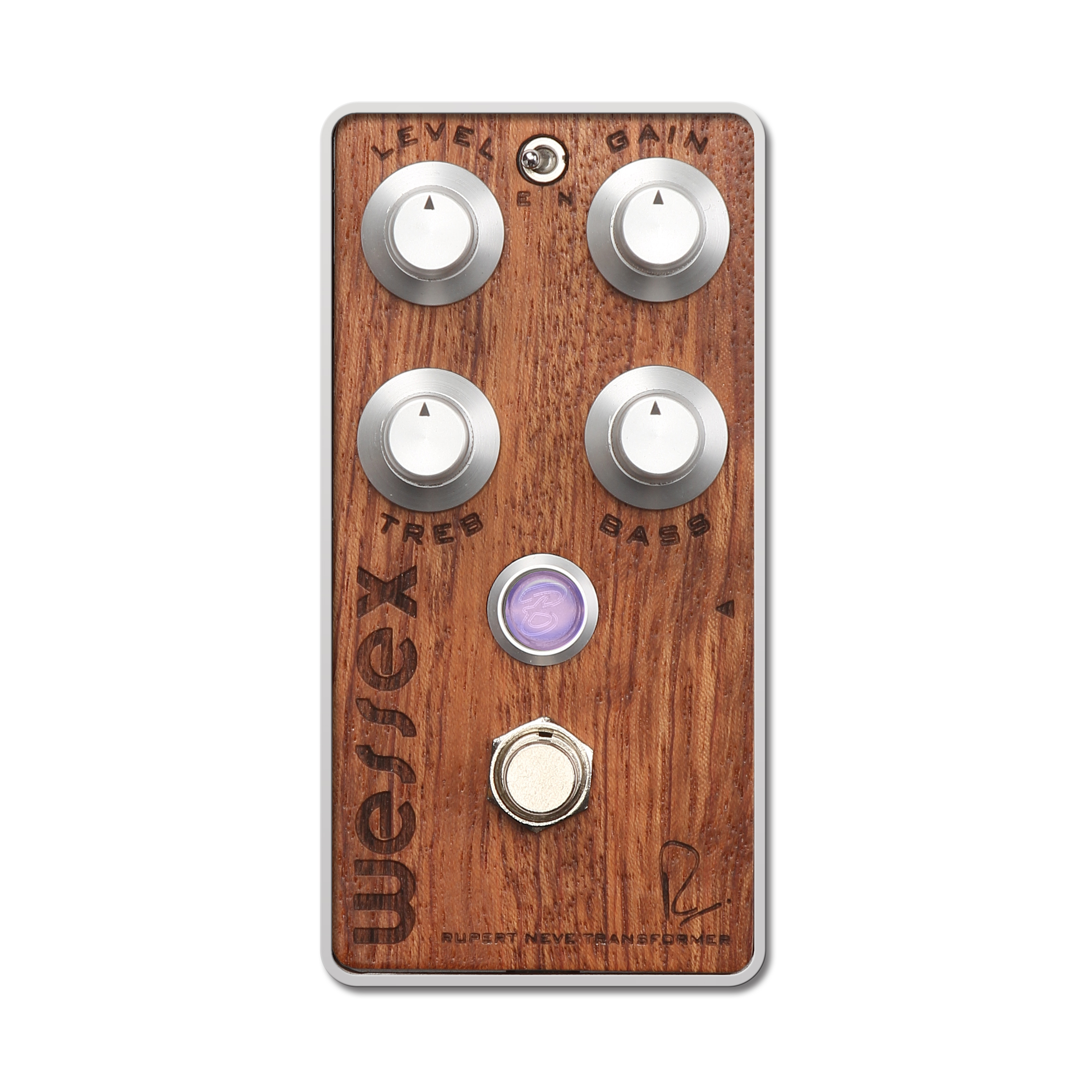

| BP-WESSEX BWF |
Bogner Wessex Overdrive Pedal - Bubinga Wood Finish |
|
Delivering classic low gain growl to rich modern scorch, the Bogner Wessex overdrive pedal with its 100% analog circuit gets its extraordinary dimensional
range from a custom transformer designed by legendary audio pioneer Mr. Rupert Neve.
Whether you want to give your clean amp some muscle or juice up your vintage amp’s gain, flick the tone-altering Enhance/Neutral switch to find your
own dirty nirvana.
Features:
True bypass
Controls: level, gain, treble and bass
E/N switch: Selects between normal and enhanced mode (extended bass and sweet highs)
Interactive Jewel light reacts to your playing dynamics
Rupert Neve Designs audio transformer
Jacks: input, output
9VDC power-connector, 50mA or more
Studio Series:
Bubinga exotic hardwood top panel
Hand formed, - sanded, - layered and - finished
Look and feel of the vintage mixing consoles from the 60's
|
| Pedals based on Amplifier Channels |
| Product |
Details |
| BP-ECSTASY BLUE |
Bogner - Ecstasy Blue Overdrive Pedal |

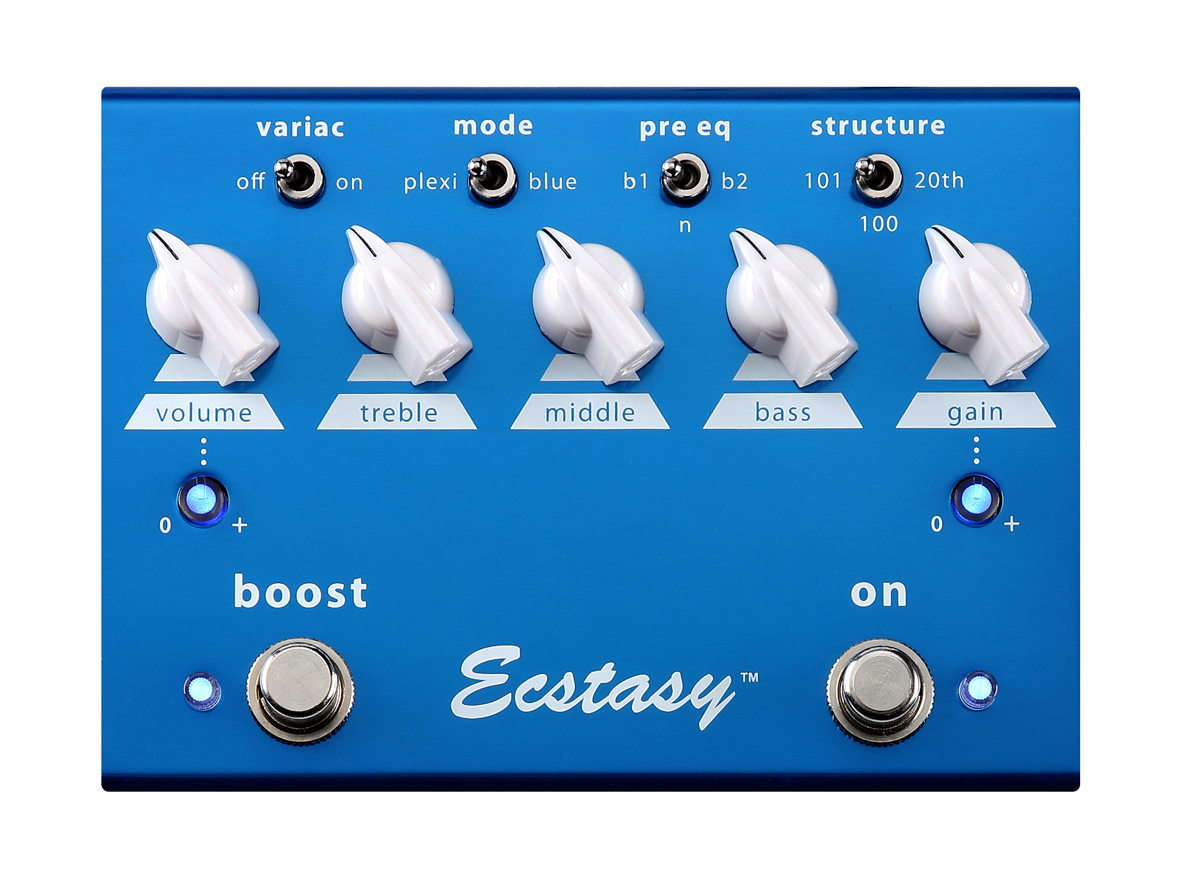

Top view

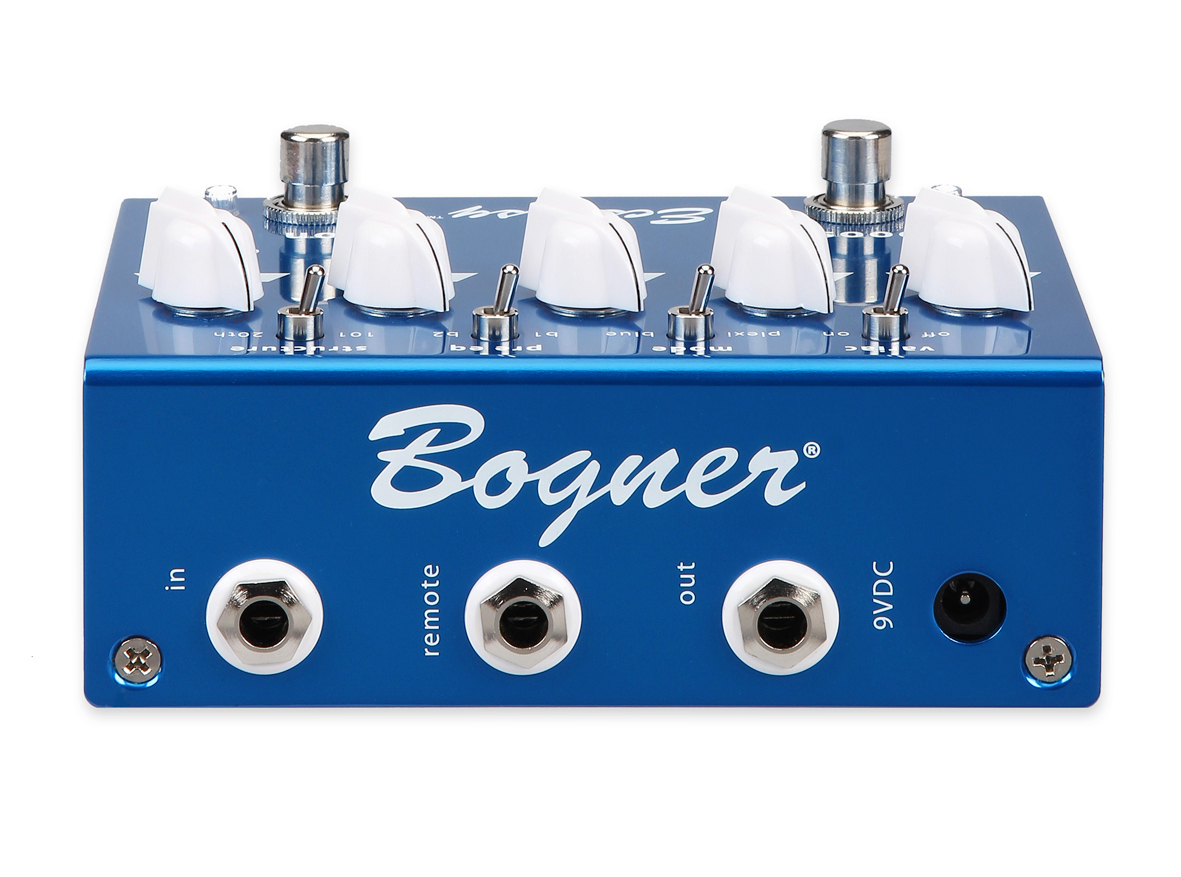

Back view

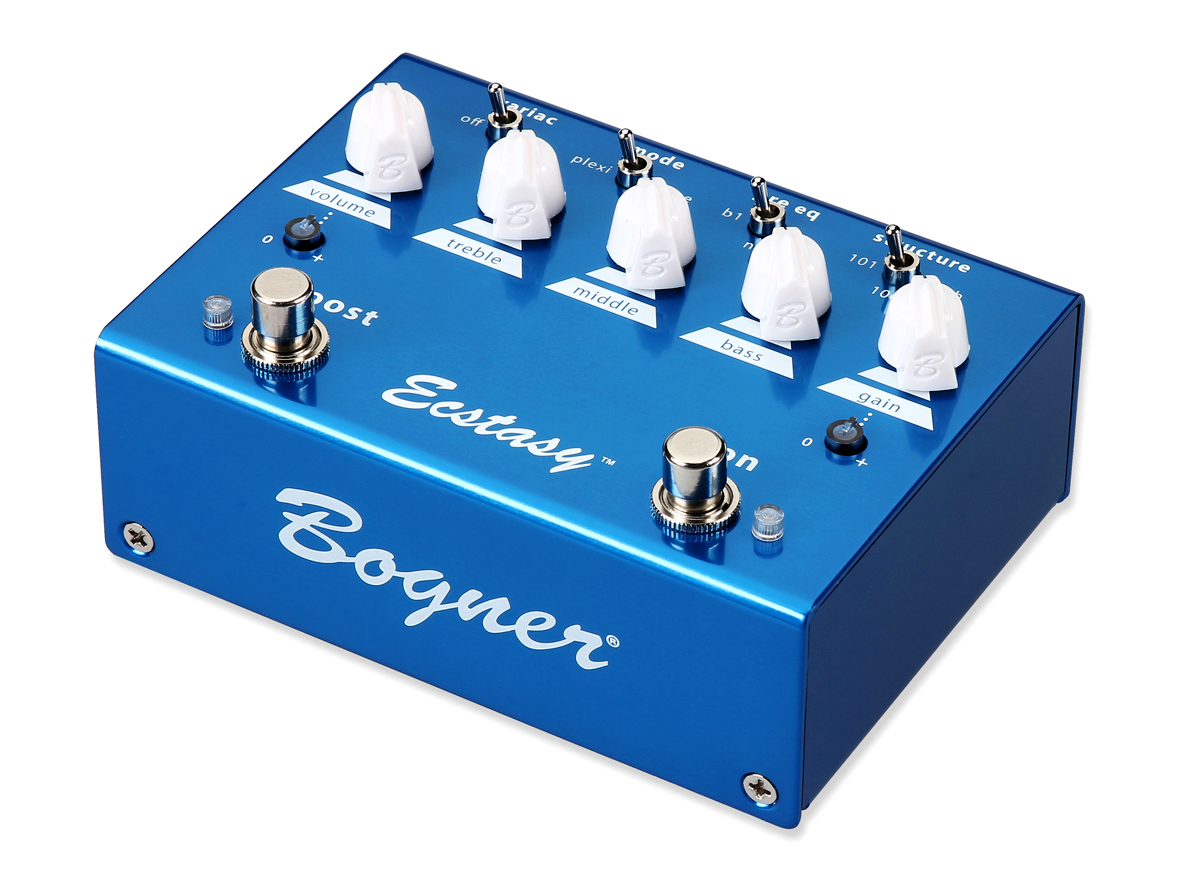

Front view

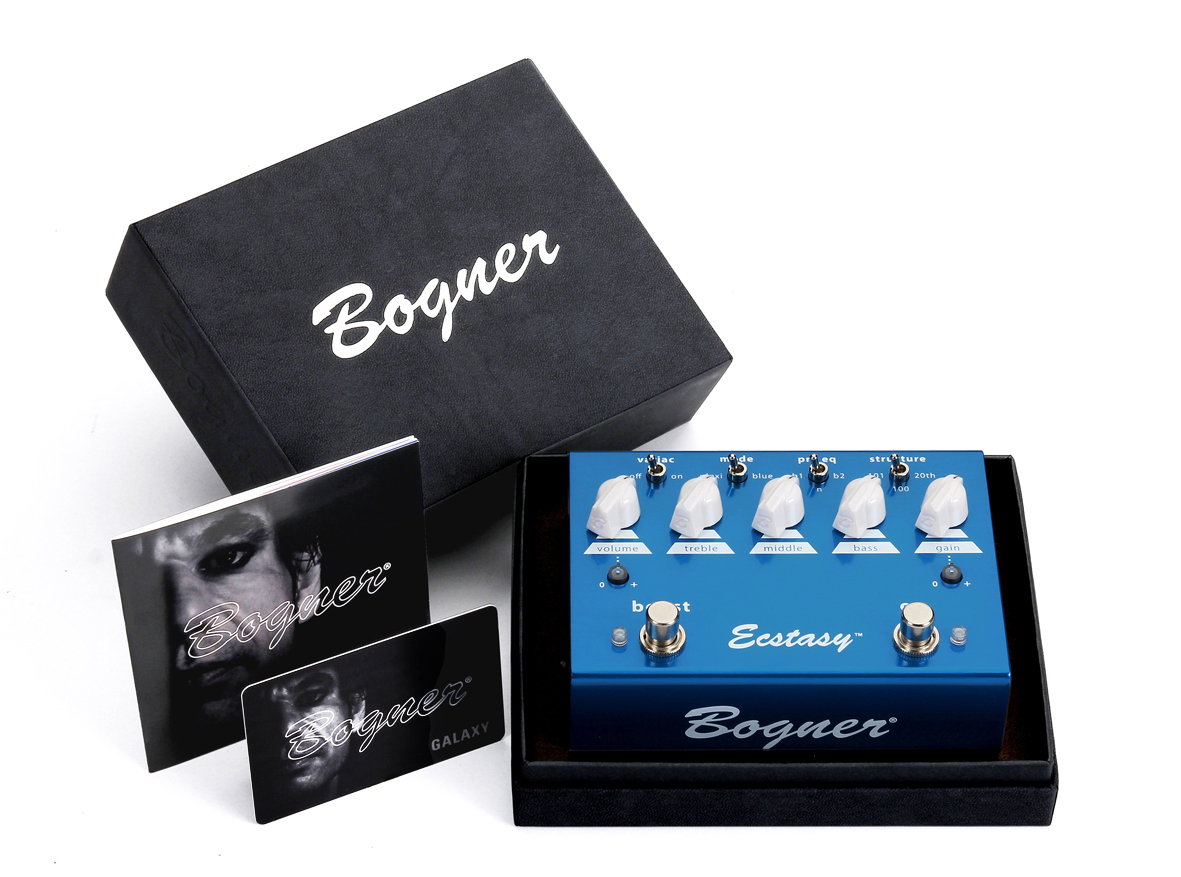

Packaging view
|
The Ecstasy amplifier was born in 1992 and decades later Bogner is still hand building each amp, one at a time, right here in Los Angeles, California.
The Ecstasy blue pedal captures the classic blue channel tone of this legendary amplifier, acclaimed for its ability to deliver iconic and classic rock-n-roll crunch.
Everyone knows that blue delivers stunning Plexi tones, but when the going gets rough, make no mistake - blue can crush on demand.
Reinhold designed the Ecstasy blue pedal with four discrete Class A gain stages and with no op-amps or diode clipping, mirroring the circuitry of the Ecstasy amplifier’s
blue channel.
This revolutionary approach provides clarity, touch sensitivity and note separation never before achieved in overdrive pedals.
The Ecstasy blue is powered by a standard 9V battery or 9VDC power supply.
Reinhold’s advanced circuitry internally elevates the voltage a substantially higher level.
This higher voltage provides a greater dynamic range which closely resembles the feel of the Ecstasy amplifier’s legendary tube design.
Features:
True bypass
Boost function with independently lit volume and gain controls
Master Controls: volume, treble, middle, bass and gain
Variac On/Off switch: adds a :dropped voltage: dynamic compression to the feel and sound
Mode Switch: Plexi and Blue offers vintage lower gain or modified higher gain levels
Pre-Eq Switch: B1, N and B2 settings control: openness: and presence of higher range harmonics
Structure Switch: 100, 101 and 20th Anniversary settings offer EQ shifts and gain structures from various eras/models of Ecstasy amplifiers
Jacks: input, output and remote.
Remote jack allows control of the on/off and boost functions via a remote switching unit
Low Battery Indicator: LEDs blink when battery voltage drops below critical threshold.
Premium components include: Double sided gold plated circuit boards, German WIMA capacitors, Japanese Nichicon capacitors and gold plated relays, Carling switches and more
|
| BP-ECSTASY RED |
Bogner - Ecstasy Red Overdrive Pedal |

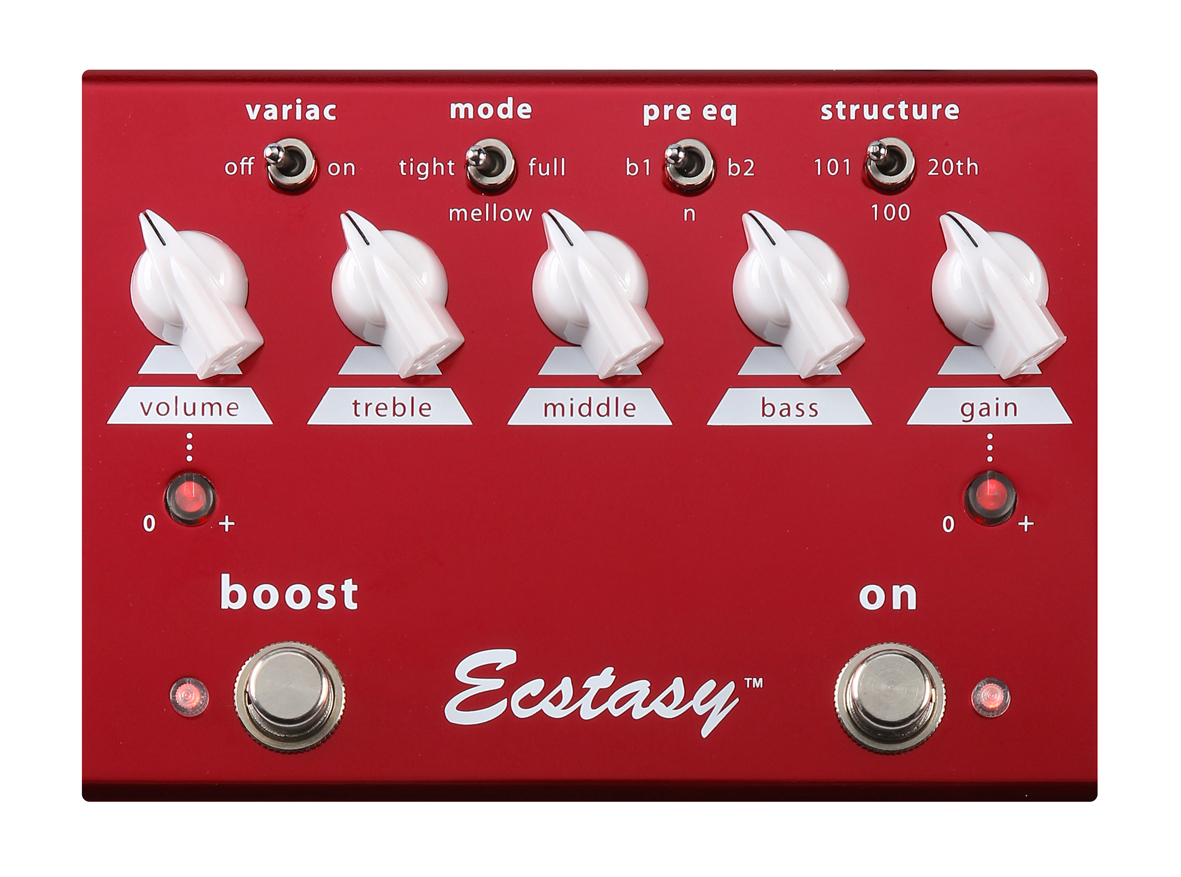

Top view

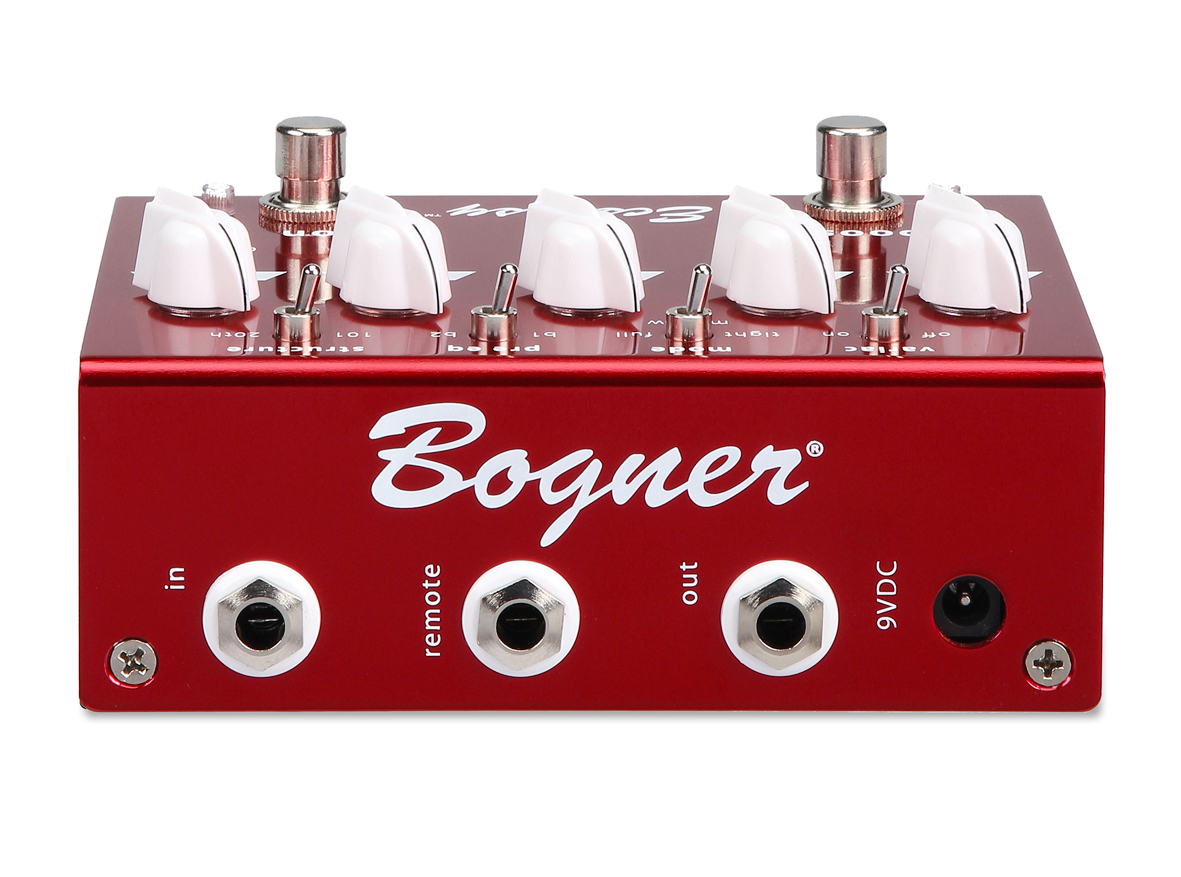

Back view

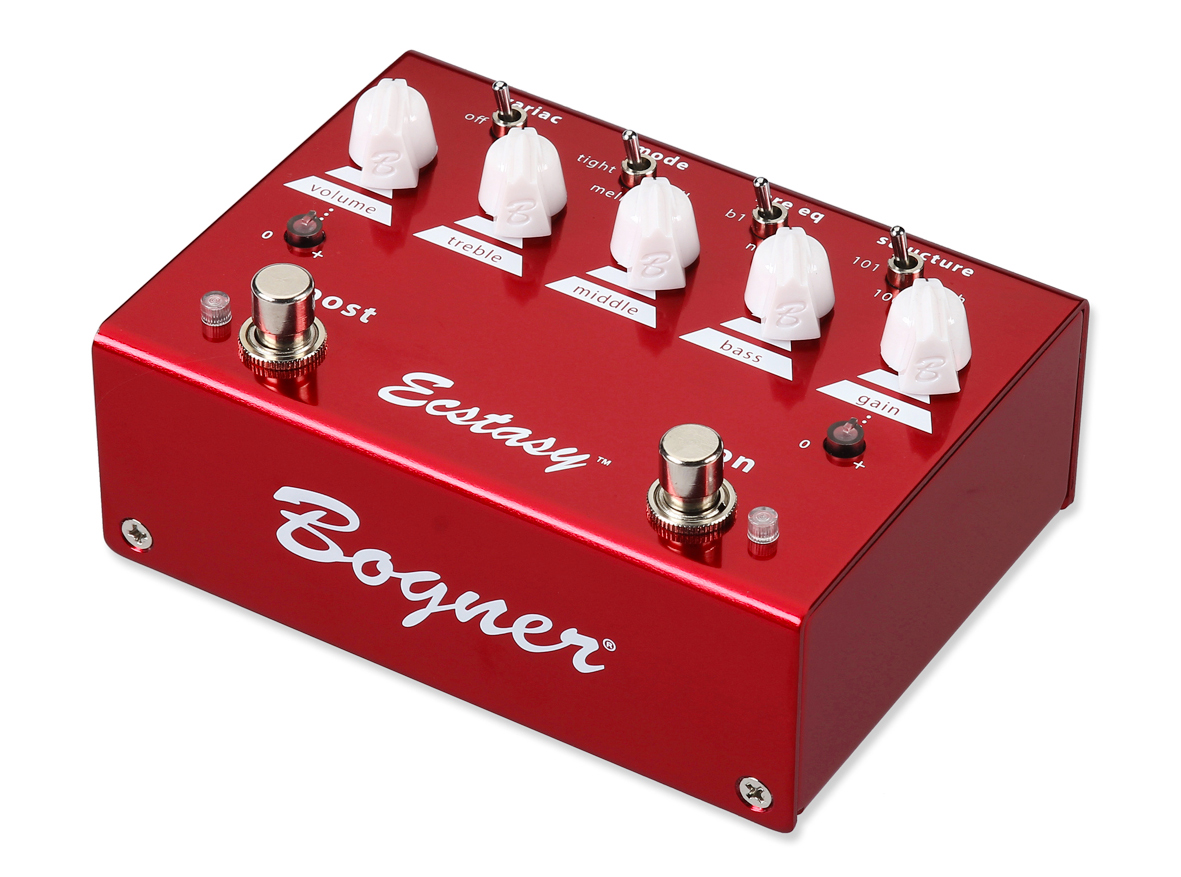

Front view

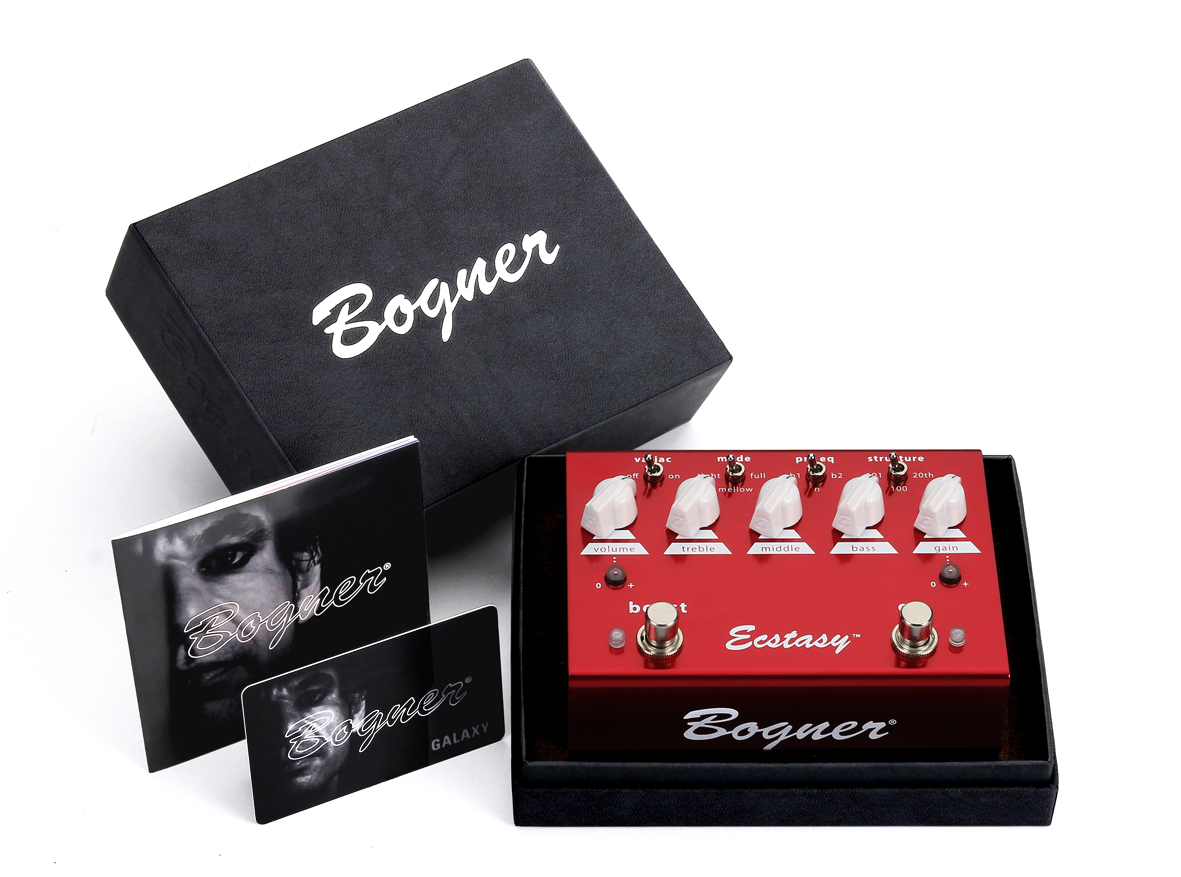

Packaging view
|
The Ecstasy amplifier was born in 1992 and decades later Bogner is still hand building each amp, one at a time, right here in Los Angeles, California.
The Ecstasy red pedal captures the mystical red channel tone of this legendary amplifier, famous for its incendiary higher gain crunch and lead tones.
Using interactive controls to adjust gain and EQ settings, the red pedal delivers a wide range of expressive tones from vintage overdrive to ripping modern high gain.
Ideal for aggressive playing styles, the red pedal boasts the outrageous heavy tones that get Bogner amps into the backlines of rock’s most notable players.
Reinhold designed the Ecstasy red pedal with five discrete Class A gain stages and with no op-amps or diode clipping, mirroring the circuitry of the Ecstasy amplifier’s red channel.
This revolutionary approach provides clarity, touch sensitivity and note separation never before achieved in overdrive pedals.
The Ecstasy red is powered by a standard 9V battery or 9VDC power supply. Reinhold’s advanced circuitry internally elevates the voltage a substantially higher level.
This higher voltage provides a greater dynamic range which closely resembles the feel of the Ecstasy amplifier’s legendary tube design.
Features:
True bypass
Boost function with independently lit volume and gain controls
Master Controls: Gain, Treble, Middle, Bass and Volume
Variac On/Off switch: adds a : dropped voltage : dynamic compression to the feel and sound
Mode Switch: Tight, Mellow and Full, shapes the general EQ curve and gain levels
Pre-EQ Switch: B1, N and B2 settings control : openness : and presence of higher range harmonics
Structure Switch: 100, 101 and 20th Anniversary settings offer EQ shifts and gain structures from various eras and models of Ecstasy amplifiersJacks: input, output and remote.
Remote jack allows control of the on/off and boost functions via a remote switching unit
Low Battery Indicator: LEDs blink when battery voltage drops below critical threshold.
Premium components include: Double sided gold plated circuit boards, German WIMA capacitors, Japanese Nichicon capacitors and gold plated relays, Carling switches and more
|
| BP-UBERSCHALL |
Bogner Uberschall Distortion Pedal |

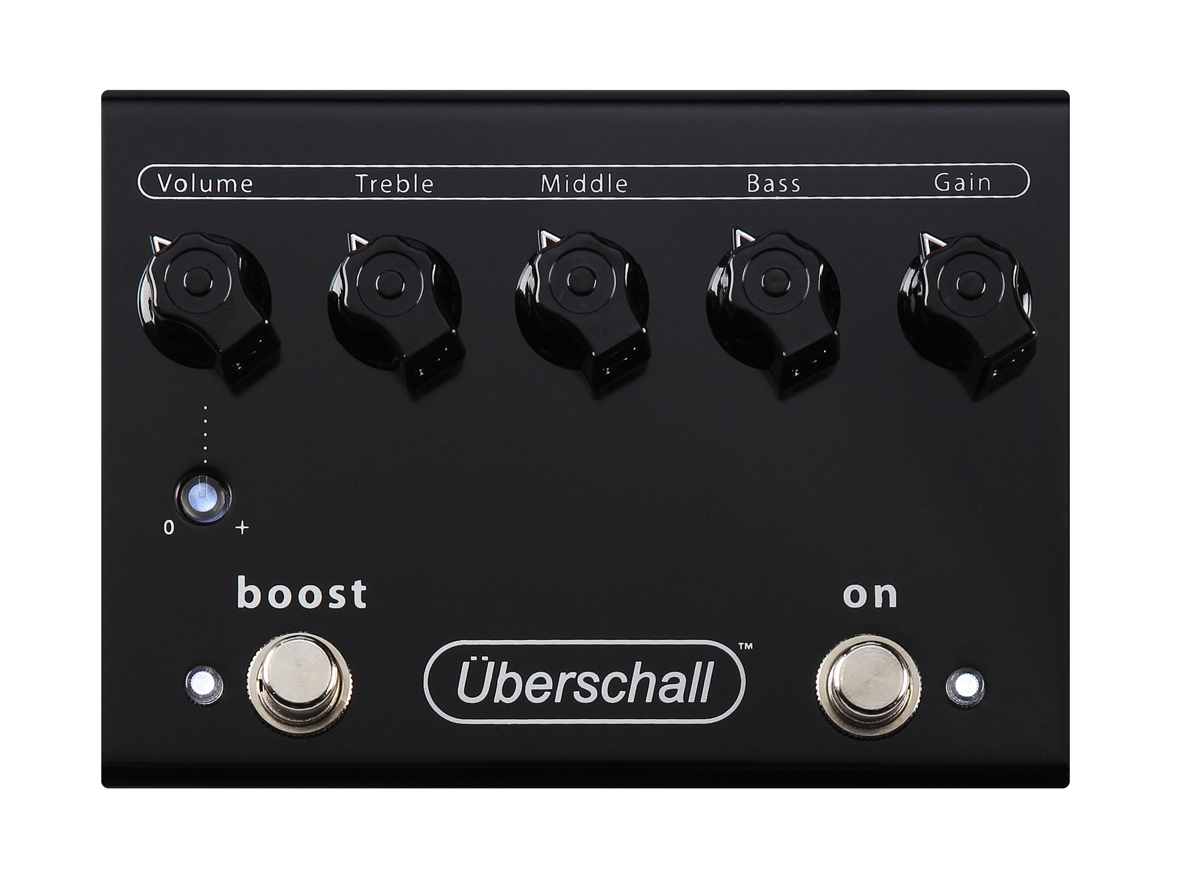

Top view

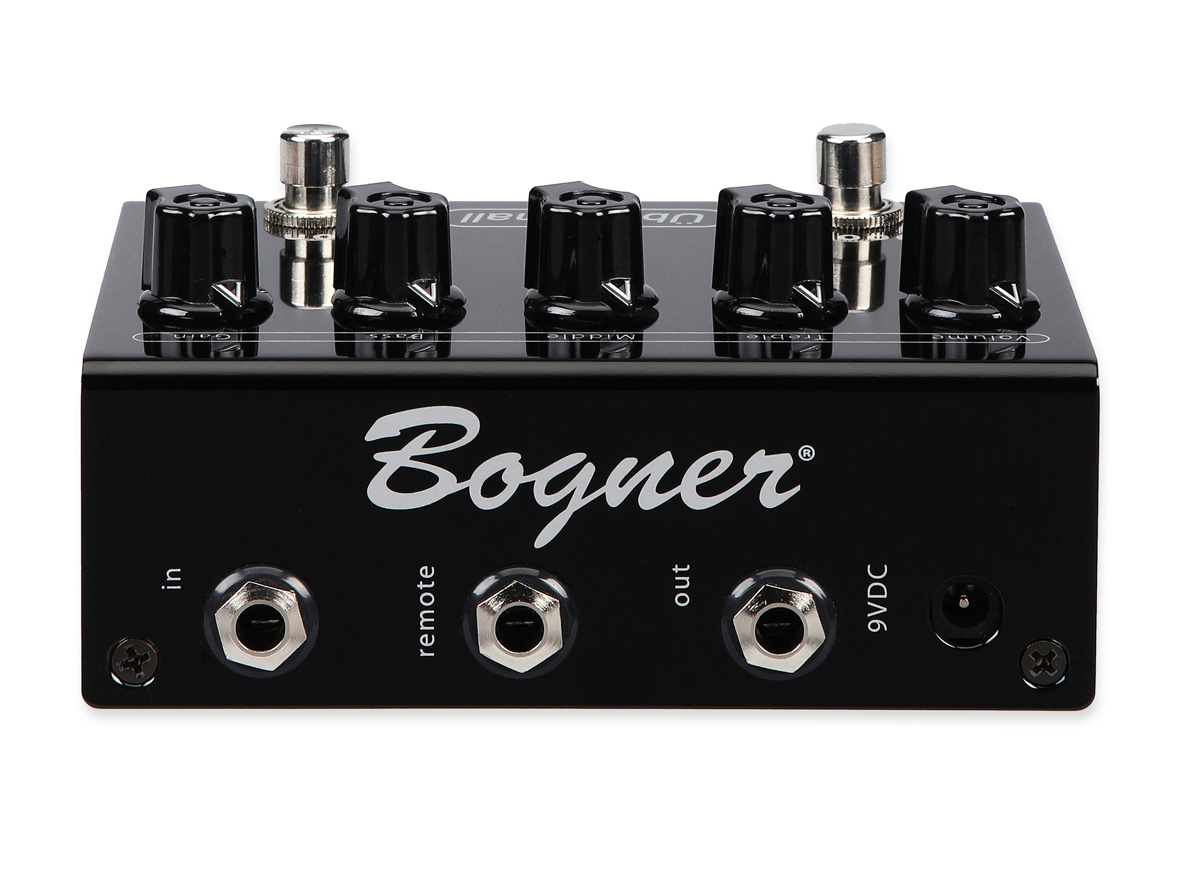

Back view

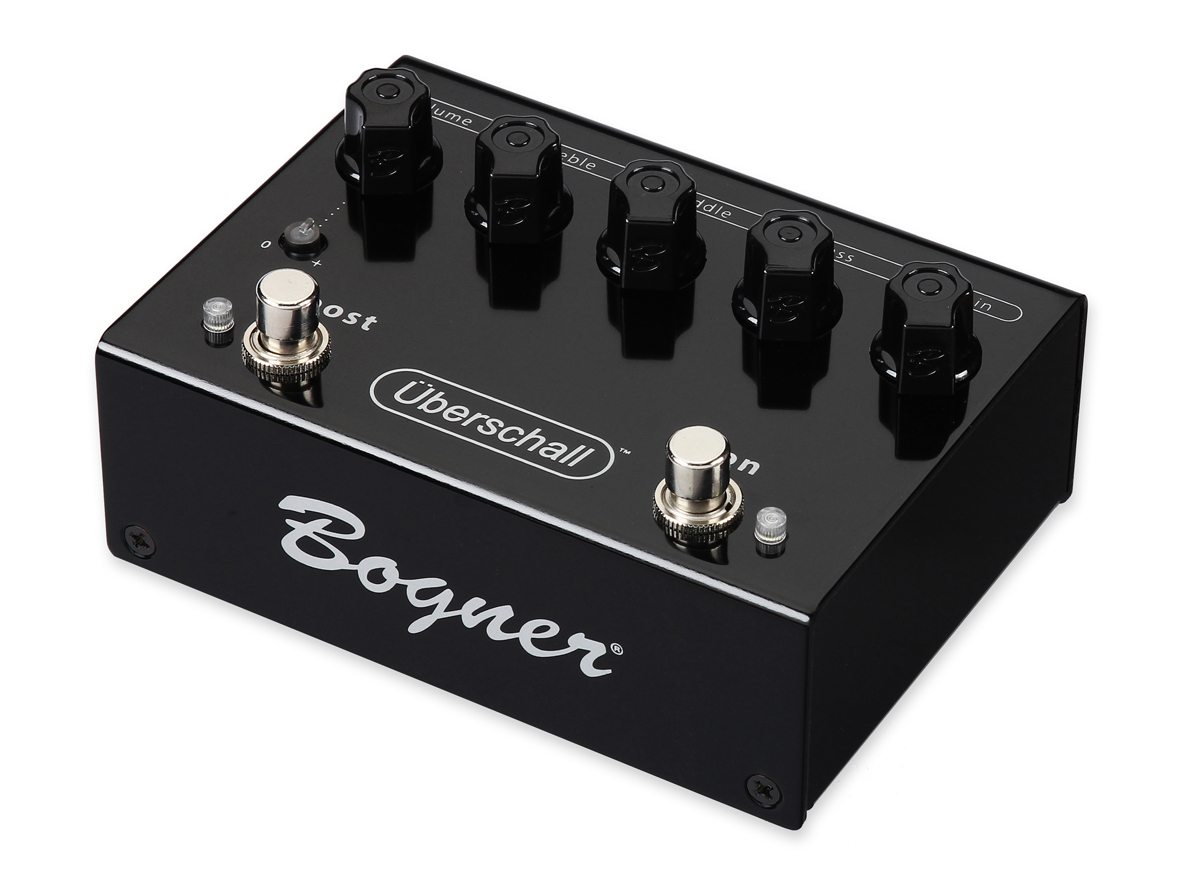

Front view

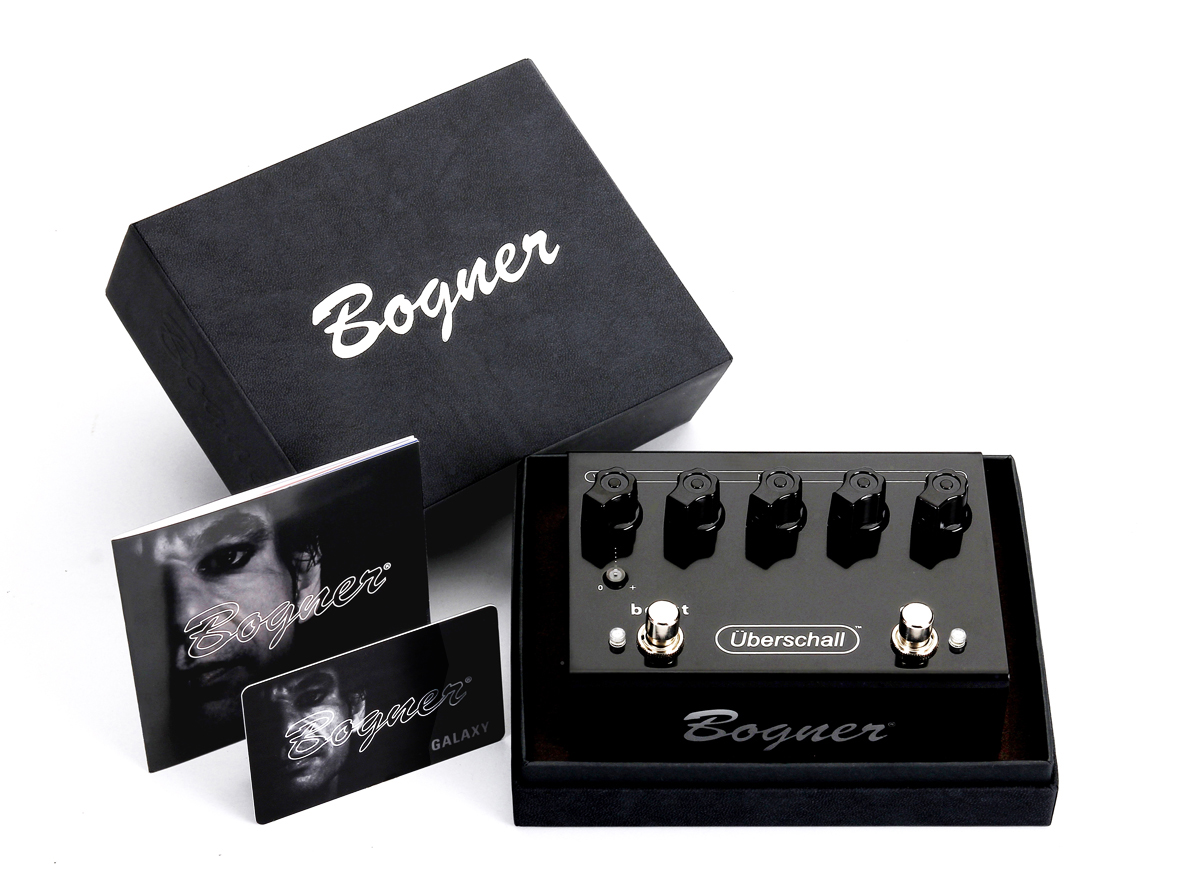

Packaging view
|
In 2001 Bogner launched the Uberschall amplifier. More than a decade later, Bogner still hand builds each one, right here in Los Angeles, California.
Dubbed ''Armageddon in a Box'', the ferocious Uberschall pedal derives its thunderous hi-gain tones from the notoriously brutal Bogner Uberschall amplifier.
While the Uberschall pedal offers a significant range of classic lower and medium gains, its true nature comes forth when deliver-ing savage, face-melting,
high-gain aggression - don’t say we didn’t warn you!
Reinhold designed the Uberschall pedal with five discrete Class A gain stage without diode clipping, mirroring circuitry of the Uberschall amplifier’s high-gain
channel.
This revolutionary approach provides clarity, touch sensitivity and note separation never before achieved in distortion pedals.
The Uberschall pedal is powered by a standard 9V battery or 9VDC power supply.
Reinhold’s advanced circuitry internally elevates the voltage a substantially higher level.
This higher voltage provides a greater dynamic range which closely resembles the feel of the Uberschall amplifier’s legendary tube design.
Features:
True bypass
Master Controls: volume, treble, middle, bass and gain
Boost function with independently lit volume control
Jacks: input, output and remote.
Remote jack allows control of the On/Off and boost functions via a remote switching unit
Low Battery Indicators: LEDs blink when battery voltage drops below critical threshold.
Premium components include: Double sided gold plated circuit boards, German WIMA capacitors, Japanese Nichicon capacitors and gold plated relays,
Carling switches and more
|
| BP-LA GRANGE |
Bogner La Grange ''Plexi'' Pedal |

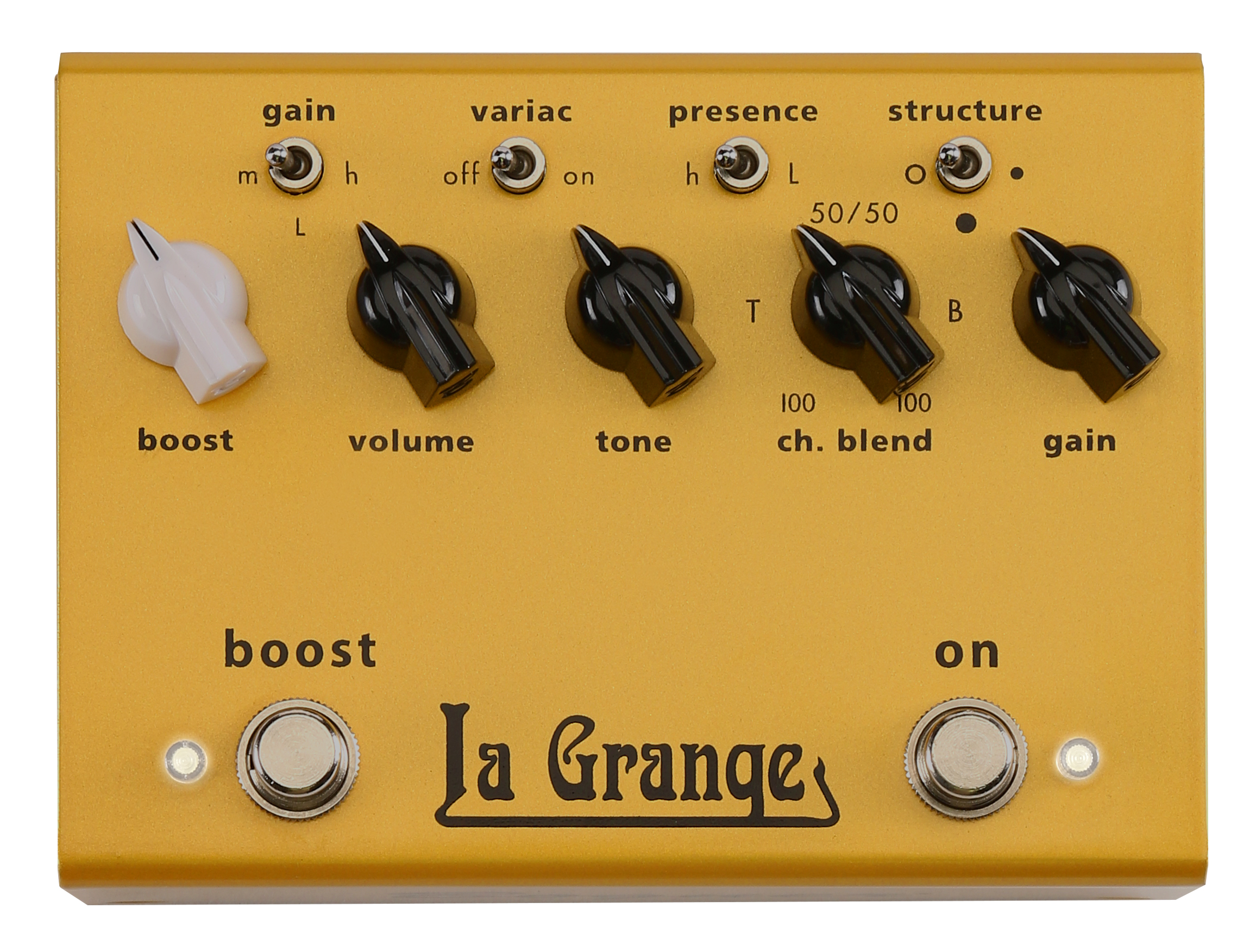

Top view

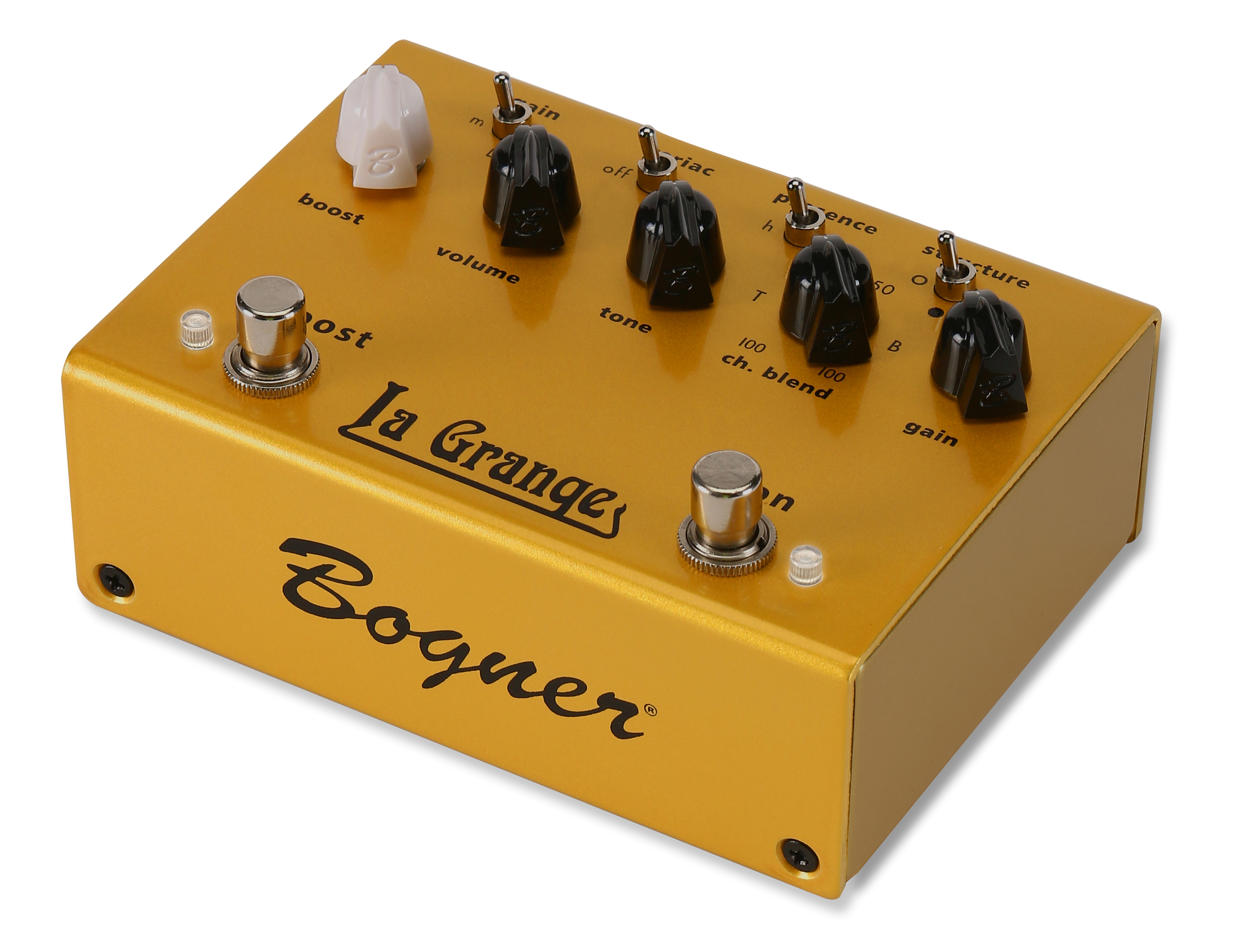

Side view

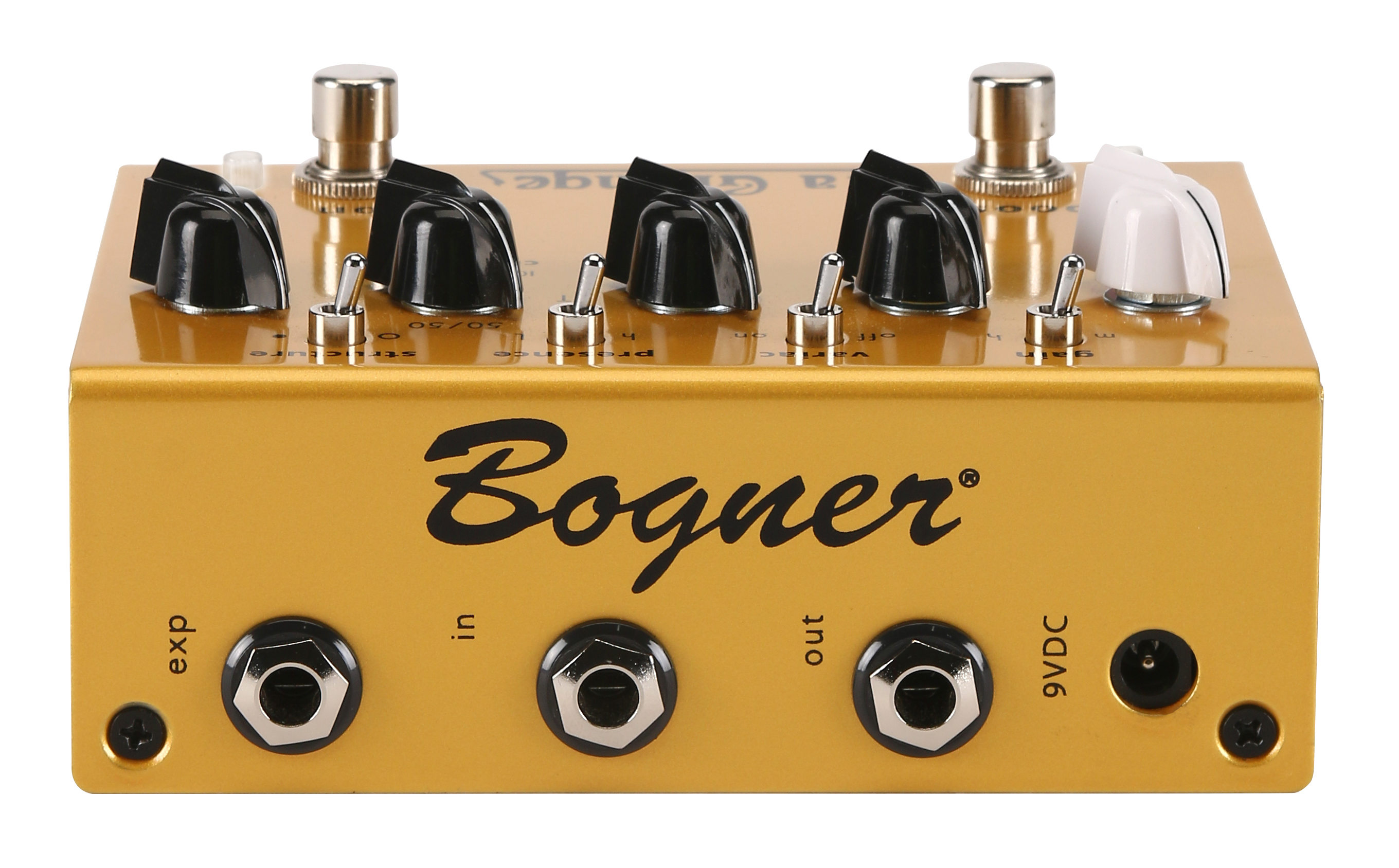

Rear view
|
The La Grange pedal is designed to emulate the famous British ''Plexi'' amplifiers from the mid 60's.
The wide variety of controls and switches, give you decades of legendary plexi tones, all the way up to the era of the modded amps from the late 80's and
throughout the 90's.
An independent boost function, with a level control, can be activated via it's own foot-switch to be either used as a stand alone boost, or
together with the La Grange's main circuitry. Essentially two independent pedals, with the boost being in series after the La Grange!
Reinhold designed the La Grange pedal with an op-amp input, followed by five discrete Class A gain stages and incorporated Germanium diode clipping. This
approach minimizes the input noise floor while retaining touch sensitivity and clarity throughout the entire gain range.
The La Grange pedal is powered by a standard 9V battery or 9VDC power supply. Reinhold’s advanced circuitry internally elevates the voltage to a substantially
higher level. The higher voltage provides a greater dynamic range which closely resembles the feel of a real amplifier; therefore running the pedal above
9VDC will not improve dynamics and it is not recommended!
Features:
True bypass
Independent boost with level control
Master Controls: volume, tone, channel blend and gain controls
Channel Blend simulates the two channels of a four input 67-69 plexi amplifier
3 position gain switch for low (plexi), medium (normal) and high (modded) gain structure
Variac mode for "brown sound", added dynamic compression with enhanced harmonics
2 position presence switch for overall brightness
3 position structure switch for a tight focused, fat loose or in between sound and feel
Jacks: input, output and exp. for foot controllable gain via the output of a volume pedal.
Low Battery Indicators: LEDs blink when battery voltage drops below critical threshold.
Premium components include: Double sided gold plated circuit boards, German WIMA capacitors, Japanese Nichicon capacitors and gold plated relays,
Carling switches and more
|
|
