NS Design |
| Product Code |
Description |
| NSD-VN-CR4AMB |

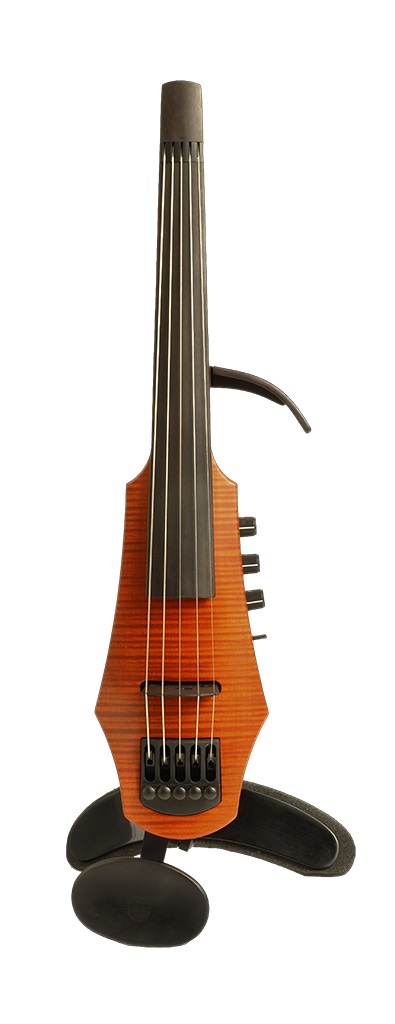

NS Design CR4 Violin 4 String Traditional Amber Stain |
|
NS Design's CR Electric Violin, available in both 4 and 5 string models, standard and fretted, is the preeminent electric violin on the market today. Designed by Ned Steinberger, the violin has a remarkable
tonal range due to its innovative Polar™ Pickup System, which is able to selectively capture the string vibration favored for both bow and pizzicato technique with stunning brilliance and sensitivity.
The violinist who prefers the elegant tone of a fine acoustic will not be disappointed, and for those who wish to explore new sonic territory, the sky is the limit.
The solid-body NS Electric Violin incorporates the familiar performance features of an acoustic instrument, including a removable bout segment to provide the left-hand reference position of a traditional
instrument. Traditional string spacing and scale length facilitate the transition from the acoustic instrument to the world of the electric violin. Direct amplification and recording capabilities allow the
violinist to experience the vast range of electronic and amplified performance opportunities, yet continue to savor the essence and timeless magic of the violin.
Features :
SOLID MAPLE BODY AND NECK: The CR Violin is crafted of solid maple, with an elegant flame maple face. This lightweight solid-body design transfers the full spectrum of sound to the pickup without
feedback, and is very stable even with changes in temperature and humidity. The ergonomic shoulder and chin rest provide comfortable, stable support, and a removable treble side bout is included for left hand
position reference. The solid ebony fingerboard is hand graduated for consistent string articulation.
PERFORMANCE SUPPORT SYSTEMS: The CR Violin comes equipped with the Custom Shoulder Rest which can be formed by the player to fit the body perfectly. The ergonomically contoured ebony chin rest is
designed to work in tandem with the Custom Shoulder Rest for control, comfort and security. The Adjustable Chin Rest is optional, offering a range of positions for individual fit, style and comfort,
providing entirely new levels of ergonomic support. As an option, the violin can also attach to NS Design's revolutionary Balanced Shoulder Rest which secures it effortlessly in optimal playing position.
BRIDGE PICKUP: The Polar directional piezo pickup system responds selectively to either vertical vibration (for the sustained plucked sound, like a mandolin), or lateral vibration (for dynamic bowing, and a
percussive plucked sound).
ACTIVE ELECTRONICS: The dual mode preamp allows the player to choose between two very distinct tone qualities. The first mode delivers the full frequency response of modern low impedance electronics,
for a rich, full-blown "electric violin" sound. The second is balanced to produce the frequency response of the traditional violin, for a more "acoustic" sound. A three-way toggle switch allows the player
to select the desired pickup and electronics options. Additional controls include volume and individual bass EQ & treble EQ controls.
PRECISION TUNING HARDWARE: With the NS Design patented tuning system, remarkably precise and stable tuning is accomplished entirely behind the bridge, in the manner similar to the fine tuners of an acoustic instrument.
With the elimination of the traditional scroll and pegs, weight is shifted in towards the body of the player for optimum comfort. Any standard violin string will fit the NS Violin, although specially formulated NS
Electric Violin Strings from D'Addario™ are recommended.
VIOLIN CADDY: Designed to cradle NS Design violins, the Violin Caddy unit mounts to any mic stand with a standard 5/8 inch thread, and provides the player with ready-to-grab convenience, in the studio or on the stage.
Specifications :
LENGTH: 540 MM (21.25'')
WIDTH: 110 MM (4 5/16'')
THICKNESS: 65 MM (2 9/16'')
WEIGHT: 720 grams (25.5 oz)
SCALE LENGTH: 330 MM (13'')
STRING SPACING:
Model 4-string
Bridge 33.5 mm (1 5/16'')
Nut 16.2 mm (4 1/64'')
Model 5-string
Bridge 44 mm (1 3/4'')
Nut 21 mm (5 3/64'')
CONSTRUCTION: Straight grain quarter-sawn solid European maple body and neck, with a flame maple face.
FINISH: Traditional amber stain with polymer top coat. Custom finish options are available for the CR Violin.
BODY REFERENCE BOUT: Black-dyed maple bout on treble side provides standard violin reference. Easily removable for unrestricted neck access.
FINGERBOARD: Hand-graduated ebony.
BRIDGE: Black-dyed maple, height adjustable via screws on back of body.
STRINGS: NS Electric Strings standard. Compatible with standard violin strings.
PRECISION TUNING HARDWARE: 40:1 fine tuners are mounted on the body behind the bridge for precise, stable tuning. Automatic string clamping allows for quick, easy string changes.
BRIDGE PICKUP: The Polar directional piezo pickup system responds selectively to either vertical vibration (for remarkably even and sustained plucked/pizzicato sound, like a mandolin),
or lateral vibration (for dynamic bowing, and a percussive plucked sound).
ACTIVE ELECTRONICS: Dual mode preamp allows the player to choose between two distinct tone qualities: (1) the extended frequency response of modern low impedance electronics, for full-blown ''electric''
sound, and (2) active electronic shaping to replicate the frequency response of the traditional violin, for a more "acoustic" sound. A three-way toggle switch allows the player to select the desired
pickup and electronics options.
CONTROLS:
Volume
Treble EQ
Bass EQ
3-way Switch for Polar pickup:
forward - vertical string vibration for sustained pizzicato
center - lateral string vibration, full frequency for arco
back - lateral string vibration, "acoustic" timbre for arco
HEADPHONE JACK: 1/8'' headphone jack for silent practice and self-monitoring.
|
| NSD-VN-NXT4aBLK |

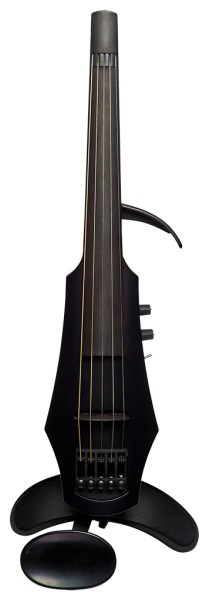

NS Design NXT4a Violin 4 String Black |
|
The NXTa Electric Violin Series, with the new active output electronics, includes 4 and 5 string violins and fretted violins, all embodying physical elegance, tremendous ease of play, and amazing tone.
Crafted to exacting standards in the Czech Republic, this series sets a high standard for performance and versatility in any setting. Click here for the original NXT Series Violin.
Good ergonomics, including light weight, are critical performance factors for any electric violin. With their familiar left hand landmarks, including the removable reference bout, NXTa series instruments are
remarkably easy to play. Starting at just 585 grams, they set the pace as some of the lightest electrics on the market.
FEATURES :
Using set screws, the rock-maple bridge can be readily adjusted to the desired action height-high and powerful, low and fast, or anywhere in between.
A contoured ebony chin rest is standard. The optional Adjustable Chin Rest is also available for players wanting a more extensive range of position adjustments for further customized fit and comfort.
The standard Custom Shoulder Rest is highly adjustable, and whose base can be readily formed to fit the chest and shoulder perfectly. The NXTa also accepts NS Design's revolutionary Balanced Shoulder Rest,
which secures it effortlessly in optimal playing position.
The patented tuning system built into the bottom of the body allows quick, easy and precise adjustment, exceptional pitch stability, and easy string changes.
At the heart of the NXTa is the Polar™ Pickup System, whose piezo components convert string vibration directly to signal output. This provides a balanced, tonally rich output, offering a wide range
of expressive opportunities. Arco and Pizzicato have significantly different vibration characteristics, and the Polar Pickup faithfully captures both.
Dual Mode Output - The new dual mode signal output electronics of the NXTa takes the convenience, versatility and performance capability of the NXT to another level.
Active Mode - Using the supplied charger, plug the NXTa into any AC outlet for 60 seconds to power the capacitor-powered active circuit for up to 16 hours of performance time. The instrument can
then be plugged straight into any low or high impedance device, no direct box necessary. Since there is no signal loss over the full frequency spectrum of the instrument, the fundamentals of every note remain
clear and strong, even with extra-long cables.
Passive Mode - The NXTa can be played in this mode when using a direct box or an amplifier with high impedance input. (This mode provides performance capabilities identical to the original NXT.)
Eco-Friendly Operation - NXTa instruments are battery-free, eliminating the hassle and cost of batteries while helping protect our environment.
Specifications :
LENGTH: 540 MM (21.25'')
WIDTH: 110 MM (4 5/16'')
THICKNESS: 65 MM (2 9/16'')
WEIGHT:
4 string: 585g
5 string: 610g
SCALE LENGTH: 330 MM (13'')
BODY/NECK: Solid, straight grain maple, with maple face (Satin Black model) or flame maple face (Sunburst model) on body.
BODY REFERENCE BOUT: Black-dyed maple bout on treble side provides standard violin reference. Easily removable for unrestricted neck access.
FINGERBOARD: Hand-graduated, asymmetric relief. NXTa violins are also available with fretted fingerboards.
BRIDGE: Black-dyed maple, height adjustable via screws on back of body.
STRINGS: NS Electric Strings standard. Compatible with standard violin strings.
PRECISION TUNING HARDWARE: 40:1 fine tuners are mounted on the body behind the bridge for precise, stable tuning. Automatic string clamping allows for quick, easy string changes.
PICKUP: The Polar directional piezo pickup system responds selectively to either lateral string vibration (for dynamic bowing) or vertical string vibration (for remarkably even and sustained
plucked/pizzicato sound, like a mandolin). A switch allows the player to choose the desired response.
ELECTRONICS & CONTROLS: Rotary volume control, with push-pull selection between Active and Passive output mode; Tone control (treble roll off); Arco/Pizzicato toggle switch.
|
| NSD-VN-NXT4aSB |

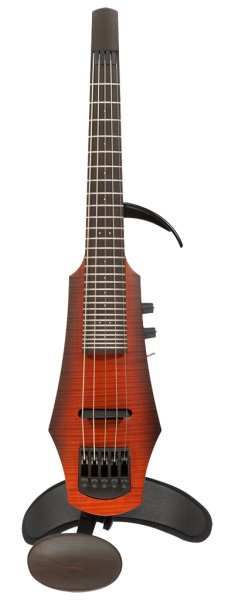

NS Design NXT4a Violin 4 Satin Sunburst |
|
The NXTa Electric Violin Series, with the new active output electronics, includes 4 and 5 string violins and fretted violins, all embodying physical elegance, tremendous ease of play, and amazing tone.
Crafted to exacting standards in the Czech Republic, this series sets a high standard for performance and versatility in any setting. Click here for the original NXT Series Violin.
Good ergonomics, including light weight, are critical performance factors for any electric violin. With their familiar left hand landmarks, including the removable reference bout, NXTa series instruments are
remarkably easy to play. Starting at just 585 grams, they set the pace as some of the lightest electrics on the market.
FEATURES :
Using set screws, the rock-maple bridge can be readily adjusted to the desired action height-high and powerful, low and fast, or anywhere in between.
A contoured ebony chin rest is standard. The optional Adjustable Chin Rest is also available for players wanting a more extensive range of position adjustments for further customized fit and comfort.
The standard Custom Shoulder Rest is highly adjustable, and whose base can be readily formed to fit the chest and shoulder perfectly. The NXTa also accepts NS Design's revolutionary Balanced Shoulder Rest,
which secures it effortlessly in optimal playing position.
The patented tuning system built into the bottom of the body allows quick, easy and precise adjustment, exceptional pitch stability, and easy string changes.
At the heart of the NXTa is the Polar™ Pickup System, whose piezo components convert string vibration directly to signal output. This provides a balanced, tonally rich output, offering a wide range
of expressive opportunities. Arco and Pizzicato have significantly different vibration characteristics, and the Polar Pickup faithfully captures both.
Dual Mode Output - The new dual mode signal output electronics of the NXTa takes the convenience, versatility and performance capability of the NXT to another level.
Active Mode - Using the supplied charger, plug the NXTa into any AC outlet for 60 seconds to power the capacitor-powered active circuit for up to 16 hours of performance time. The instrument can
then be plugged straight into any low or high impedance device, no direct box necessary. Since there is no signal loss over the full frequency spectrum of the instrument, the fundamentals of every note remain
clear and strong, even with extra-long cables.
Passive Mode - The NXTa can be played in this mode when using a direct box or an amplifier with high impedance input. (This mode provides performance capabilities identical to the original NXT.)
Eco-Friendly Operation - NXTa instruments are battery-free, eliminating the hassle and cost of batteries while helping protect our environment.
Specifications :
LENGTH: 540 MM (21.25'')
WIDTH: 110 MM (4 5/16'')
THICKNESS: 65 MM (2 9/16'')
WEIGHT:
4 string: 585g
5 string: 610g
SCALE LENGTH: 330 MM (13'')
BODY/NECK: Solid, straight grain maple, with maple face (Satin Black model) or flame maple face (Sunburst model) on body.
BODY REFERENCE BOUT: Black-dyed maple bout on treble side provides standard violin reference. Easily removable for unrestricted neck access.
FINGERBOARD: Hand-graduated, asymmetric relief. NXTa violins are also available with fretted fingerboards.
BRIDGE: Black-dyed maple, height adjustable via screws on back of body.
STRINGS: NS Electric Strings standard. Compatible with standard violin strings.
PRECISION TUNING HARDWARE: 40:1 fine tuners are mounted on the body behind the bridge for precise, stable tuning. Automatic string clamping allows for quick, easy string changes.
PICKUP: The Polar directional piezo pickup system responds selectively to either lateral string vibration (for dynamic bowing) or vertical string vibration (for remarkably even and sustained
plucked/pizzicato sound, like a mandolin). A switch allows the player to choose the desired response.
ELECTRONICS & CONTROLS: Rotary volume control, with push-pull selection between Active and Passive output mode; Tone control (treble roll off); Arco/Pizzicato toggle switch.
|
| NSD-VN-WAV4AMB |

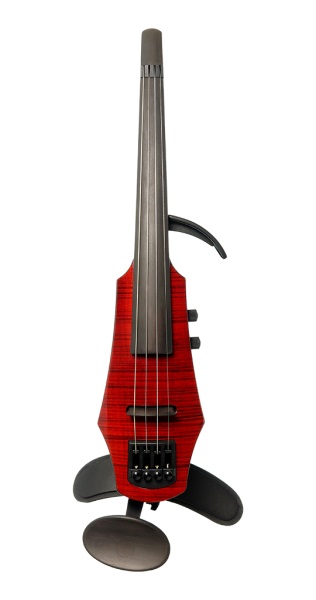

NS Design WAV4 Violin 4 String Amber Burst |
|
The NS WAV Electric Violin is the perfect electric violin for any player interested in exploring the world of amplified or electronic performance. Full, natural tone, outstanding comfort,
and sophisticated design are combined in an instrument which is simply a pleasure to play.
At the heart of every NS electric violin is the Polar™ Pickup System. Sensor and bridge geometry are integrated to translate every nuance to the amplifier and speaker system.
The big, bold, and brilliant tone looks to the future, yet the sonic ingredients of the acoustic violin are present and can be tamed to become traditional in character. The Polar pickup has the unique
ability to analyze the direction of string vibration to enhance the bowed response and to facilitate bow technique. The unusually powerful piezo crystals do not require on-board power, for maintenance-free
performance without the hassle of batteries.
The reserve power of a well set up electric violin makes the instrument easier to play than a conventional acoustic. The NS WAV Electric Violin's rock maple bridge is easily adjustable
for the playing style and action height you prefer; high and powerful like a traditional violin, low and fast like an electric guitar, or anywhere in between. The ebony fingerboard is graduated
for each string to optimize the tone and playability of every note. The neck is smooth and fast, with traditional thumb reference points for the scroll and heel. The removable bout provides
accurate position reference for players accustomed to using the traditional body shape for reference.
Accurate, stable tuners are the key to in-tune performance. The patented self-clamping tuning mechanism automatically grips the string ever more tightly as tension is applied, and the micrometer
tuning is smooth and precise. This rock solid tuning is light years ahead of the friction tuners found on traditional instruments.
Light weight and good balance are the essential comfort factors for any electric violin. The fully carved interior of the NS WAV Electric Violin keeps the weight to the minimum,
and the body mounted tuners bring the center of gravity back over the shoulder where it belongs. The WAV includes the Custom Shoulder Rest, which allows you to shape and adjust the
padded base to the contours of your shoulder and chest, for a secure and comfortable fit. Also included with the instrument is the ergonomically contoured ebony chin rest, designed to
work in tandem with the Custom Shoulder Rest for control, comfort and security. The optional Adjustable Chin Rest is also available for players wanting a more extensive range of position adjustments
for more customized fit and comfort. The WAV also accepts NS Design's revolutionary Balanced Shoulder Rest, which ''floats'' the instrument in the desired playing position.
The NS WAV Electric Violin comes complete with fabric covered hardshell case with handle and shoulder strap. It’s padded on the inside, with room for your bow, and compartments for the shoulder rest,
output cable, and extra gear. An optional flight case is available.
Specifications :
LENGTH: 540 MM (21.25'')
WIDTH: 110 MM (4 5/16''
THICKNESS: 65 MM (2 9/16'')
WEIGHT: Highly carved interior for light comfort.
4 string: 670g
5 string: 695g
SCALE LENGTH: 330 MM (13'')
BODY/NECK: Maple neck and body for rich tone and visual grace.
BODY REFERENCE BOUT: Black-dyed maple bout on treble side provides standard violin reference. Easily removable for unrestricted neck access.
FINGERBOARD: Ebony, hand-graduated, asymmetric relief, shaped for effortless play.
BRIDGE: Black-dyed maple, height adjustable via screws on back of body.
STRINGS: Compatible with standard violin strings.
PRECISION TUNING HARDWARE: NS Design patented tuning system. 40:1 fine tuners are mounted on the body behind the bridge for precise, stable tuning. Automatic string clamping allows for quick, easy string changes.
PICKUP: The Polar directional piezo pickup system responds selectively to either lateral string vibration (for dynamic bowing) or vertical string vibration (for remarkably even and sustained plucked/pizzicato sound,
like a mandolin).
ELECTRONICS & CONTROLS: Passive circuit with high impedance output, no batteries required. Volume control and Tone control (treble roll off).
|
| NSD-VN-WAV4BLK |

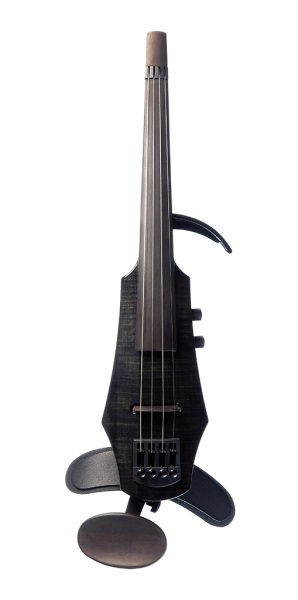

NS Design WAV4 Violin 4 String Black |
|
The NS WAV Electric Violin is the perfect electric violin for any player interested in exploring the world of amplified or electronic performance. Full, natural tone, outstanding comfort,
and sophisticated design are combined in an instrument which is simply a pleasure to play.
At the heart of every NS electric violin is the Polar™ Pickup System. Sensor and bridge geometry are integrated to translate every nuance to the amplifier and speaker system.
The big, bold, and brilliant tone looks to the future, yet the sonic ingredients of the acoustic violin are present and can be tamed to become traditional in character. The Polar pickup has the unique
ability to analyze the direction of string vibration to enhance the bowed response and to facilitate bow technique. The unusually powerful piezo crystals do not require on-board power, for maintenance-free
performance without the hassle of batteries.
The reserve power of a well set up electric violin makes the instrument easier to play than a conventional acoustic. The NS WAV Electric Violin's rock maple bridge is easily adjustable
for the playing style and action height you prefer; high and powerful like a traditional violin, low and fast like an electric guitar, or anywhere in between. The ebony fingerboard is graduated
for each string to optimize the tone and playability of every note. The neck is smooth and fast, with traditional thumb reference points for the scroll and heel. The removable bout provides
accurate position reference for players accustomed to using the traditional body shape for reference.
Accurate, stable tuners are the key to in-tune performance. The patented self-clamping tuning mechanism automatically grips the string ever more tightly as tension is applied, and the micrometer
tuning is smooth and precise. This rock solid tuning is light years ahead of the friction tuners found on traditional instruments.
Light weight and good balance are the essential comfort factors for any electric violin. The fully carved interior of the NS WAV Electric Violin keeps the weight to the minimum,
and the body mounted tuners bring the center of gravity back over the shoulder where it belongs. The WAV includes the Custom Shoulder Rest, which allows you to shape and adjust the
padded base to the contours of your shoulder and chest, for a secure and comfortable fit. Also included with the instrument is the ergonomically contoured ebony chin rest, designed to
work in tandem with the Custom Shoulder Rest for control, comfort and security. The optional Adjustable Chin Rest is also available for players wanting a more extensive range of position adjustments
for more customized fit and comfort. The WAV also accepts NS Design's revolutionary Balanced Shoulder Rest, which ''floats'' the instrument in the desired playing position.
The NS WAV Electric Violin comes complete with fabric covered hardshell case with handle and shoulder strap. It’s padded on the inside, with room for your bow, and compartments for the shoulder rest,
output cable, and extra gear. An optional flight case is available.
Specifications :
LENGTH: 540 MM (21.25'')
WIDTH: 110 MM (4 5/16''
THICKNESS: 65 MM (2 9/16'')
WEIGHT: Highly carved interior for light comfort.
4 string: 670g
5 string: 695g
SCALE LENGTH: 330 MM (13'')
BODY/NECK: Maple neck and body for rich tone and visual grace.
BODY REFERENCE BOUT: Black-dyed maple bout on treble side provides standard violin reference. Easily removable for unrestricted neck access.
FINGERBOARD: Ebony, hand-graduated, asymmetric relief, shaped for effortless play.
BRIDGE: Black-dyed maple, height adjustable via screws on back of body.
STRINGS: Compatible with standard violin strings.
PRECISION TUNING HARDWARE: NS Design patented tuning system. 40:1 fine tuners are mounted on the body behind the bridge for precise, stable tuning. Automatic string clamping allows for quick, easy string changes.
PICKUP: The Polar directional piezo pickup system responds selectively to either lateral string vibration (for dynamic bowing) or vertical string vibration (for remarkably even and sustained plucked/pizzicato sound,
like a mandolin).
ELECTRONICS & CONTROLS: Passive circuit with high impedance output, no batteries required. Volume control and Tone control (treble roll off).
|
|
