Schatten Design : Jack Assemblies
 Product Code  Description
SDMVC Schatten MVC Jack Assembly
MVC Jack Assembly

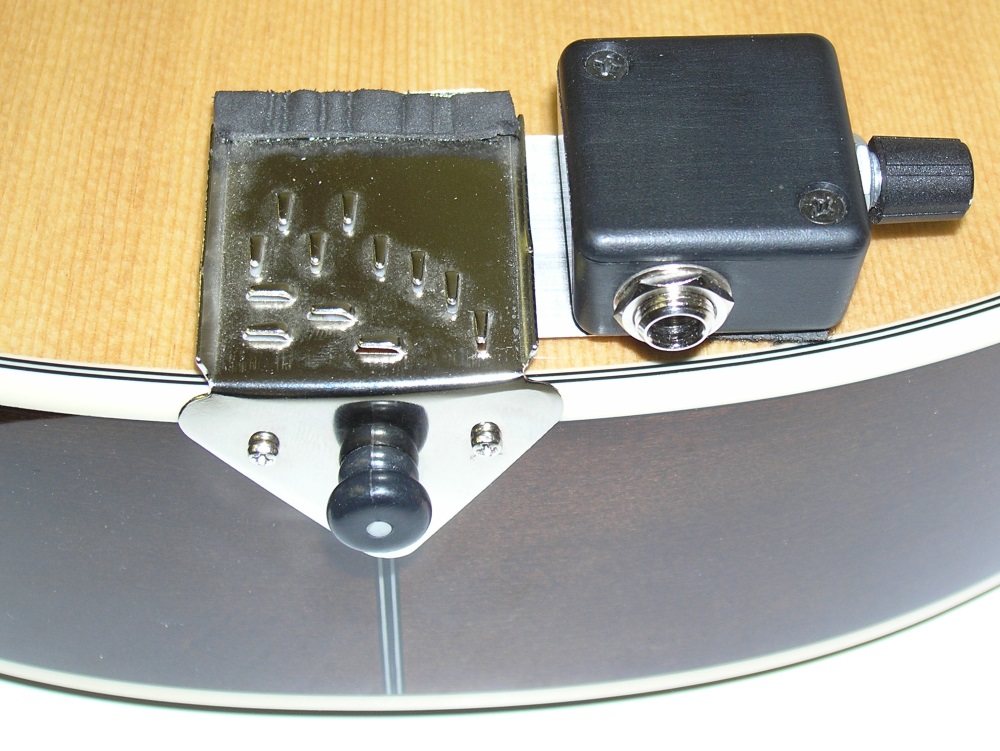

SDMVCplus Schatten MVC Jack Assembly with Volume control
MVC Jack Assembly with Volume control

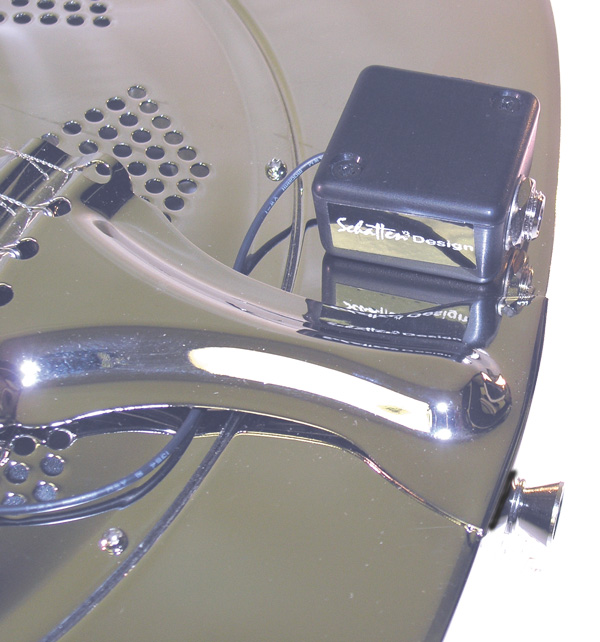

New MVC Series Jack Assemblies
Low Profile Units for Mandolin, Bouzouki, Mandola, Reso's

Measuring only 1/2'' in height and about 1 3/8'' square, the MVC jacks give you a quick and convenient way to attach a 1/4'' output jack to an instrument.
The MVC jack assemblies, with our exclusive tailpiece mounting, are much more secure and a lot less likely to damage an instrument than the older 'clamp on' type of jack assemblies . . . .and they stay out of the way of your hand.
The underside of and MVCjack assembly has a protective felt backing to protect the instrument from scratches.
MVC jacks will mount quickly and simply to virtually all normal tailpieces. Some tailpieces (such as a Weber) require a slight trimming of the mounting materials supplied with the jack assembly.


SDNBJA Schatten Rosewood Banjo Jack Assembly

NBJA Banjo Jack Assembly
Beautiful!

We have crafted an output jack assembly out of solid rosewood that allows you to attach a standard 1/4" output to your banjo without drilling any holes in the instrument or modifying it in any manner.

This new design of jack assembly attaches to the tensioning hooks in the same manner that an arm rest is attached.

This unit was designed to fit virtually any banjo known to man. It will fit banjos with hook spacings from 1 1/8" up to 1 15/16"


SDNBJAplus Schatten Black ABS Banjo Jack assembly + Volume control

NBJAplus Banjo Jack assembly with built-in volume control
mounts to the tensioning hooks.

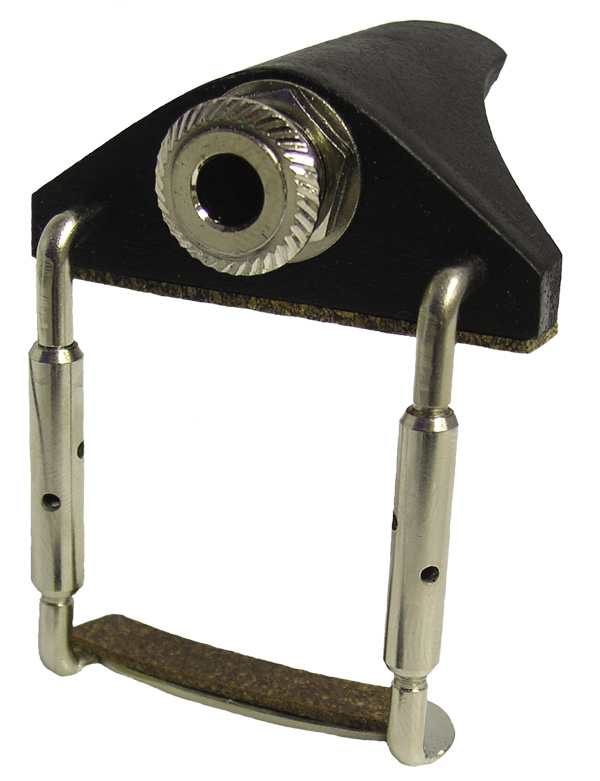

SDSJA Schatten Jack Assembly

For Violin, Viola - Low Profile Output Jack Assembly

We've crafted an all wood body for our new SJA. It's lighter and less intrusive in appearance than just about any other clamp on jack on the market. Using the same hardware found on a violin chinrest, the jack assembly attaches to your instrument securely without damage.

The assembly body is made of darkened mahogany and is heavily cork padded where it comes into contact with the instrument. It is specially cut away on the underside to provide extra clearance. The jack assembly takes a standard 1/4" plug so that you can use a quality guitar cord....and there is enough clearance to plug in most wireless units.

Specifications:
The SJA jack assembly will fit all violins 4/4, 3/4, sizes and violas.

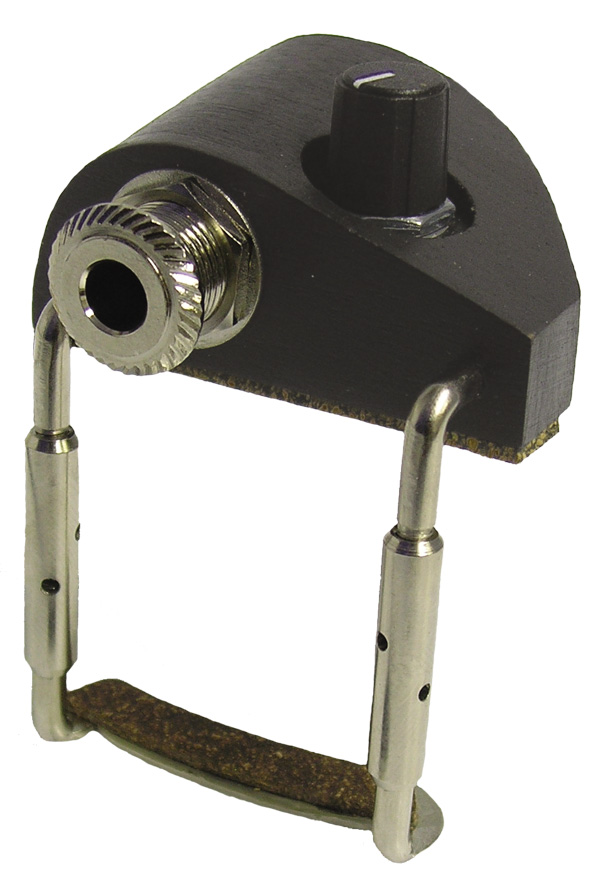

SDSJAplus Schatten Jack Assembly + Volume Control

For Violin, Viola - Low Profile Output Jack Assembly with Volume Control

The new SJAplus allows you to control the volume of your instrument right at your fingertips. In addition to the normal specifications of our standard SJA, we have added a high quality volume control unit.

Using the same hardware found on a violin chinrest, the jack assembly attaches to your instrument securely without damage. It is specially cut away on the underside to provide extra clearance. The jack assembly takes a standard 1/4" plug so that you can use a quality guitar cord....and there is enough clearance to plug in most wireless units.

Specifications:
The SJAplus jack assembly will fit all violins 4/4, 3/4 sizes and violas.
