| Product Code |
Description |
| VLPP |

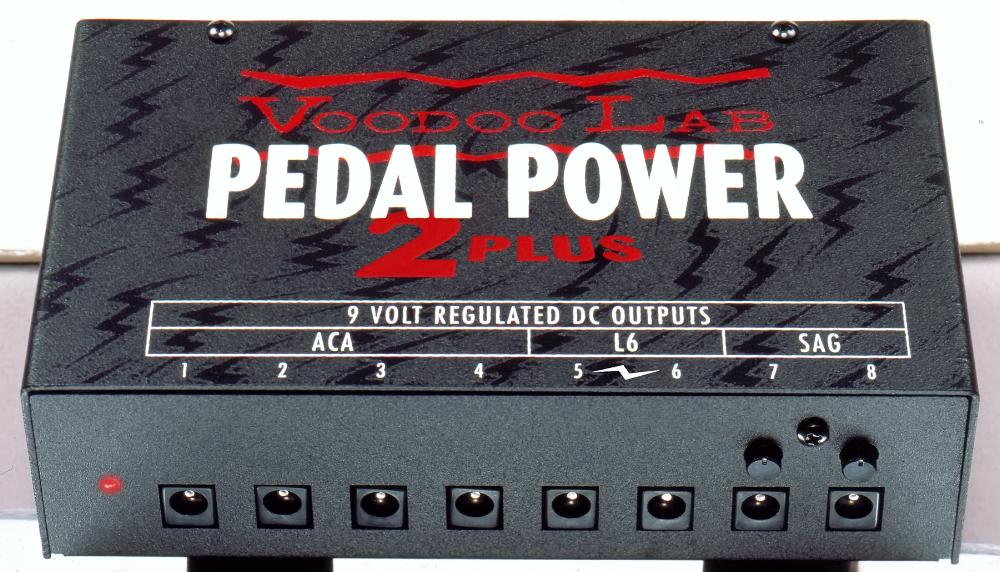

Voodoo Lab Pedal Power 2+ |
|
The Voodoo Lab Pedal Power 2 is a universal power supply for all battery-opered guitar pedal effects.
New features include two outputs that will power Line 6 modeling pedals and two outputs that can have a variable voltage ''sag''
to emulate dying carbon batteries.
Like the original Pedal Power, each of its eight outputs are completely isolated, short circuit protected,
regulated and highly filtered.
The Pedal Power 2 comes complete with cables, detachable AC power cord, is hand made in the U.S.A.
and carries a 1-year warranty in Australia.
''Ive wrestled with various store-bought and custom-made power supplies over the years, but this was the first
time I was able to connect everything in minutes and get great results without hum or profanity'' -Guitar Player
Important!
The Pedal Power 2 Plus is manufactured to operate from a specific supply voltage depending on where it's being used in the world.
There are three different models which accept 100V, 120V or 240V mains.
All units sold in North America are for 120V only.
You cannot operate a 120V Pedal Power using 240V power without the correct step down transformer.
The supply voltage is marked on the bottom of the unit.
Don't forget, here in Australia we operate on 240V.
Isolated Outputs
Each output is completely isolated.
This means that you won't have any ground loops or interaction between pedals that can cause hum and noise.
It also means that unlike other ''common ground'' power supplies, you can run effects that have both negative and
positive grounds without difficulty.
Boss Pedals
There are two types of Boss pedal effects, which specify either PSA or ACA type power supplies.
Boss pedals specifying the PSA type adapter operate at 9V like most other pedals.
Boss pedals which specify the ACA type adapter operate at a higher voltage.
The Voodoo Lab Pedal Power is the only universal power supply available which will power any type of Boss pedal effect.
There is a selector switch for each DC output on the bottom of the Pedal Power to select the correct voltage.
Short Circuit Protection
Each output on the Pedal Power is short-circuit protected.
This means that if you have a short in a power cable, or one of your pedals malfunctions, the Pedal Power
will temporarily turn off the power to that pedal.
All other outputs will continue to function normally and the Pedal Power is not damaged.
Toroidal Transformer
Power transformers create an electric field that can cause hum and noise in your effects.
Some effects, such as Wahs, are particularly susceptible to this.
A toroidal transformer has a specially designed core that greatly reduces this electric field.
The Pedal Power uses this type of power transformer so that your pedal board is quiet.
Pedal Power 2 Plus Specifications
Input
IEC connector:
230V 50/60Hz (Europe/Australia model)
Output
5.5x2.1mm barrel connectors - center negative
Short circuit protected
|
| DIP Switch: NORMAL |
| Output | DC Voltage | Max current |
| 1-4 (ACA) | 9V | 100mA |
| 5-6 (L6) | 9V | 250mA |
| 7-8 (SAG) | 9V | 100mA |
| DIP Switch: ON |
| Output | DC Voltage | Max current |
| 1-4 (ACA) | 12.3V | 60mA |
| 5-6 (L6) | 14.5V / 12V (unregulated) | 50mA / 200mA+ |
| 7-8 (SAG) | Adjustable 4V - 9V | 100mA |
Included Cables
5.5x2.1mm right angle barrel connectors (6)
5.5x2.1mm straight barrel connectors (2)
5.5x2.5mm “red” barrel for L6 (1)
3.5mm mini plug for vintage MXR or Electro-Harmonix (1)
9V battery snap for pedals without a power jack (1)
Physical
6" wide x 3.4" deep x 1.75" tall (152 x 86 x 45 mm)
Weight: 2 lbs. (0.9 kg)
Special
Toroidal power transformer
Rear Courtesy Auxiliary AC outlet, 200 watts max
|
|
| VLPP4X4 |

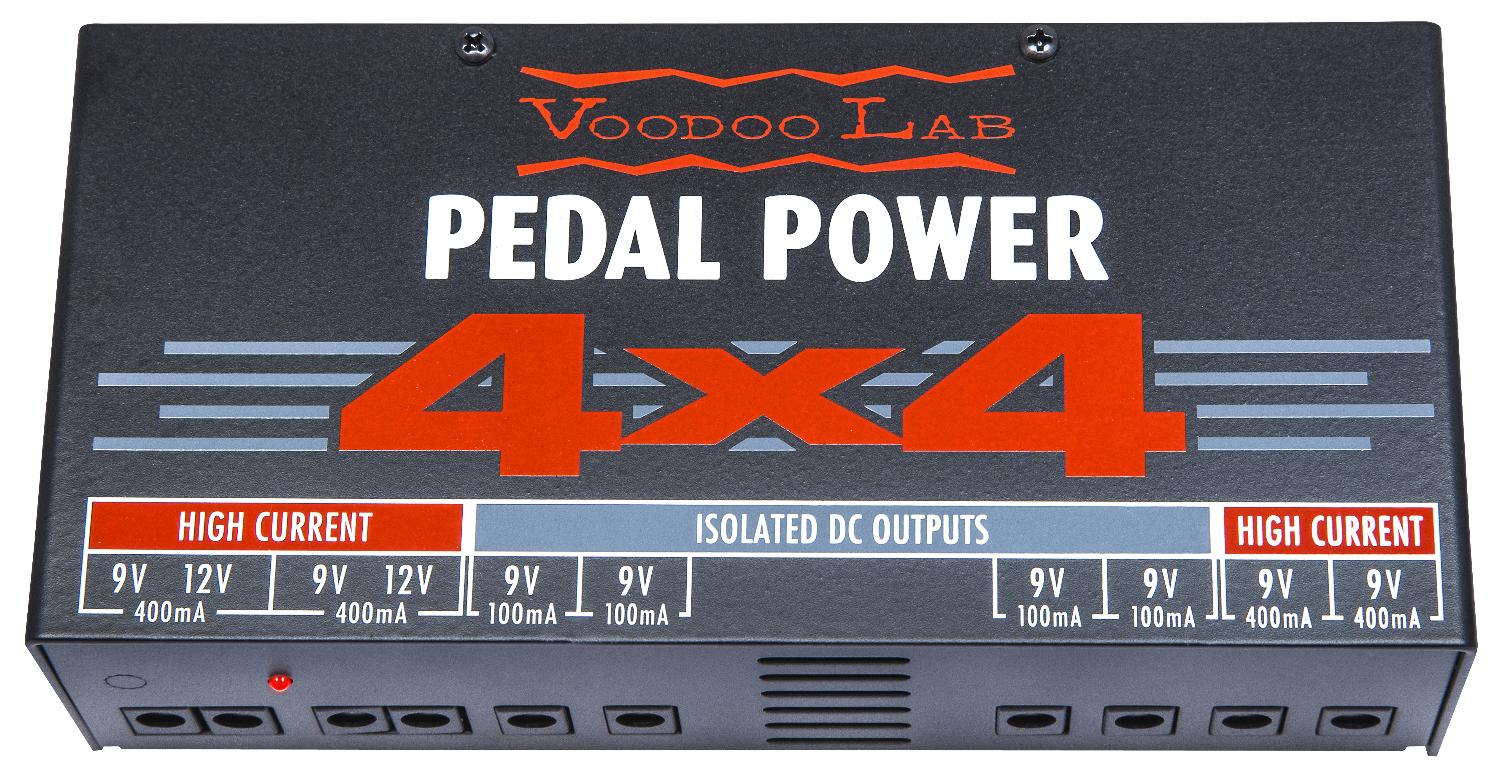

Voodoo Lab Pedal Power 4 X 4 |
|
Pedal Power 4x4 is a linear (analog) power supply that can properly power up to 4 digital power-hungry effects like those from Strymon,
Eventide, Line 6, TC Electronic and more, plus 4 standard 9-volt battery stompboxes.
Perfect for large pedalboards, Pedal Power 4x4 features 8 completely isolated, filtered, and regulated output sections that will
keep your pedals dead quiet and free from high-frequency noise that occurs with digital ''switching'' power supplies.
Pedal Power 4x4 features an internal thermometer that controls a silent fan keeping the unit cool even under the most
adverse heat conditions of outdoor festival stages.
Even with poor AC line conditions, it delivers clean, consistent power. Handmade in the USA using the finest components,
Pedal Power 4x4 was designed to meet and exceed the needs of our most demanding professional users.
Pedal Power 4X4 features:
Four 9V isolated high-current 400mA output sections (2 with 12V option) power Strymon, Eventide,
Line 6 (excludes M9/M13), Boss Twin, TC Electronic Nova and more
Four 9V isolated 100mA output sections
All outputs compatible with 9V battery operated pedals
Linear regulation and toroidal transformer for lowest possible noise
Easily fits small to large pedalboards and mounts under Pedaltrain product
Includes cables and detachable AC line cord
Engineered and handmade in the USA
|
| VLPPD |

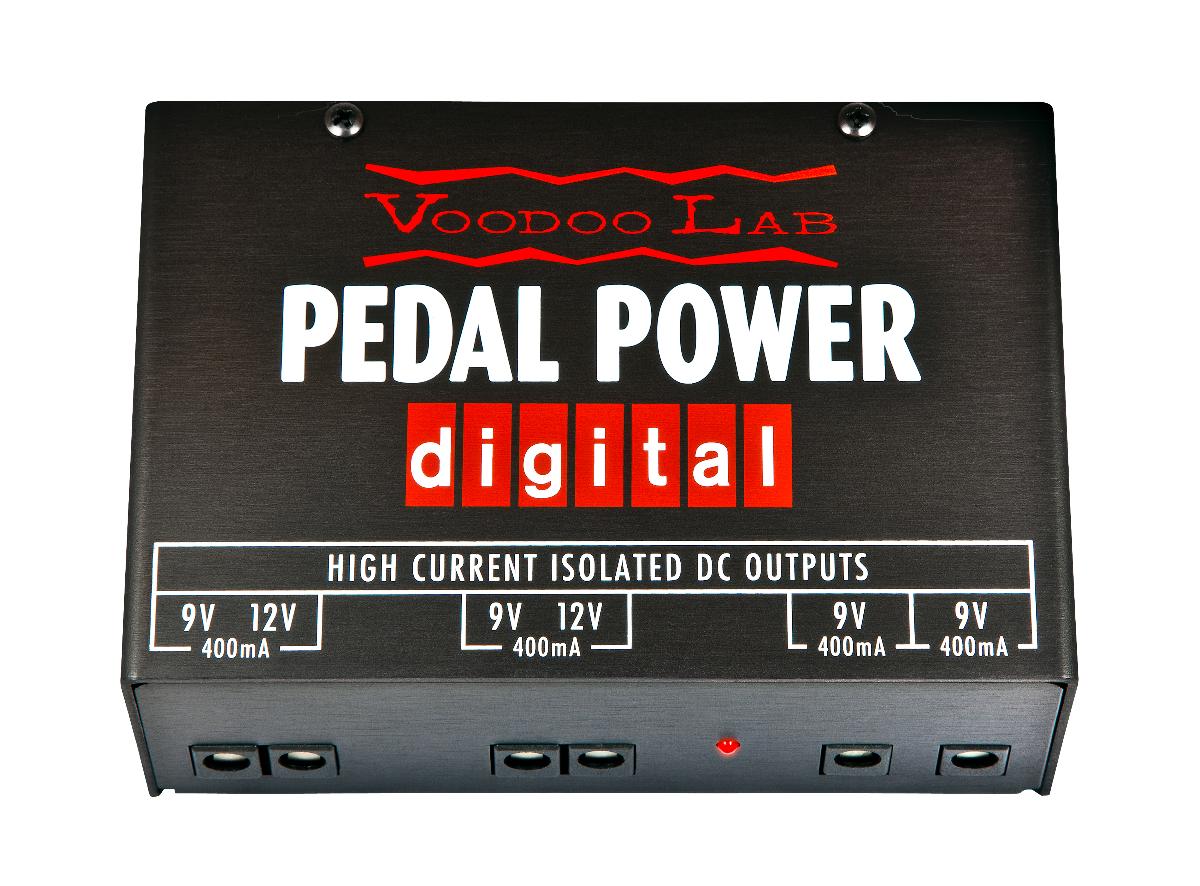

Voodoo Lab Pedal Power Digital |
|
Pedal Power Digital is a linear (analog) power supply for high-current DSP-based pedal effects and accessories.
With 4 completely isolated, filtered, and regulated output sections, Pedal Power Digital keeps your pedals dead quiet
and free from high-frequency noise that occurs with digital ''switching'' power supplies.
Pedal Power Digital will properly power up to 4 digital power-hungry effects like those from Strymon,
Eventide, Line 6, TC Electronic and more. Its compact size is perfect for small pedalboards, rack shelves,
and as an additional power supply for larger boards.
Built to meet the needs of professional users, Pedal Power Digital will provide clean, consistent power,
even under the poor AC line conditions often found on stage. Completely isolated output sections eliminate
ground loops and unwanted interactions between effects, resulting in lower noise and noticeably improved tone.
Pedal Power Digital features:
* Four 9V isolated high-current 400mA output sections (2 with 12V option)
* Powers Strymon, Eventide, Line 6 (excludes M9/M13), Boss Twin, TC Electronic Nova and more
* Also compatible with all 9V battery operated pedals
* Linear regulation and toroidal transformer for lowest possible noise
* Compact design fits small pedalboards and rack shelves
* Includes cables and detachable AC line cord
* Engineered and handmade in the USA
|
| VLPPAC |

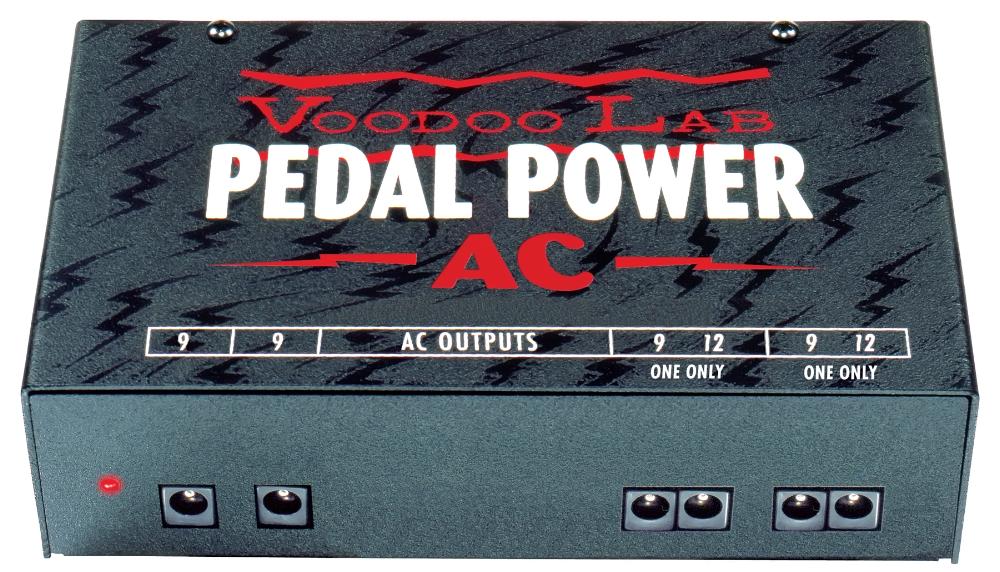

Voodoo Lab Pedal Power AC |
|
Pedal Power 2 plusThe Voodoo Lab Pedal Power AC is a pedalboard power supply designed to operate high current
and AC powered pedal effects.
Finally, a professional solution for powering tube overdrives, modeling pedals, or devices including the Whammy, POD,
Rotosphere and many others without wall warts.
The Pedal Power AC provides two 9VAC and two selectable 9VAC or 12VAC outputs.
Features include a toroidal transformer and completely isolated outputs to insure noise free operation.
It comes complete with cables and detachable AC power cord.
Like all Voodoo Lab products, the Pedal Power AC is hand made in the U.S.A.
Important!
The Pedal Power AC is manufactured to operate from a specific supply voltage.
There are three different models which accept 100V, 120V or 240V mains.
All units sold in North America are for 120V only.
You cannot operate a 120V Pedal Power using 240V power without the correct step down transformer.
The supply voltage is marked on the bottom of the unit.
|
| VLPPI5 |

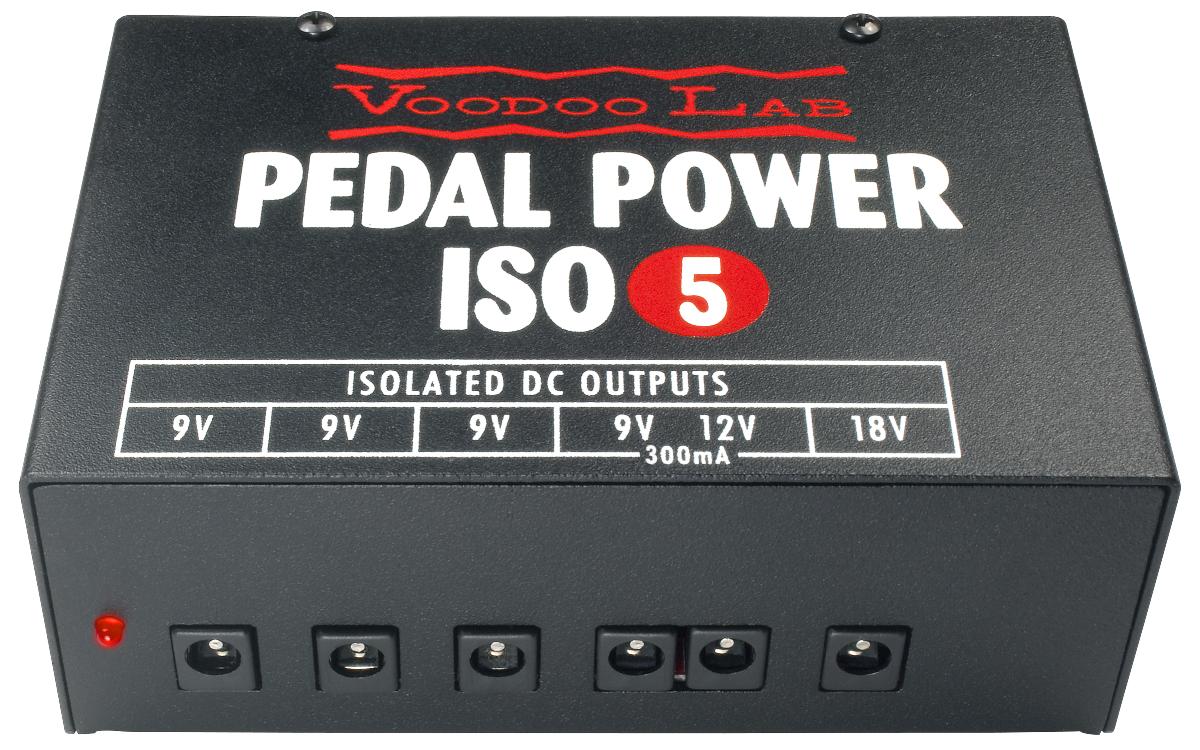

Voodoo Lab Pedal Power ISO 5 |
|
Isolated power supply for pro stage and studio use
Pedal Power 2 plus Pedal Power ISO-5 is an isolated power supply for powering guitar pedal effects and accessories.
It's the ultimate compact solution for smaller pedalboards, rack shelves, or even as an additional power supply for larger boards.
With five isolated, filtered and regulated output sections, ISO-5 keeps even the most sensitive vintage and boutique analog pedals dead quiet.
Pedal Power ISO-5 includes a high-current output which will properly power modern digital power-hungry effects like those from
Eventide, Line 6, and TC Electronic. There's also a dedicated 18V output for those pedals which need the higher voltage for extra headroom.
Designed to meet the needs of professional users, Pedal Power ISO-5 will provide clean, consistent power,
even with the poor AC line conditions often found on stage.
Completely isolated output sections eliminate ground loops and unwanted interactions between effects,
resulting in lower noise and noticeably improved tone.
Pedal Power ISO-5 features:
- Five isolated outputs
- Compatible with all battery operated pedals
- Includes high current 9V and 12V outputs, plus dedicated 18V output
- Powers Boss Twin, Eventide, Line 6 modelers, and TC Electronic Nova pedals
- Linear regulation and toroidal transformer for lowest possible noise
- Compact design fits small pedalboards and rack shelves
- Includes cables and detachable AC line cord
- Engineered and handmade in the USA
Important!
Pedal Power ISO-5 is manufactured to operate from a specific supply voltage. There are three different models, which accept 100V, 120V,
or 240V mains. All units sold in North America are for 120V only. You cannot operate a 120V model using 240V power without the correct
step down transformer. The supply voltage is marked on the bottom of the unit.
Short Circuit Protection
Every output on Pedal Power ISO-5 is individually short-circuit protected. This means that if you have a short in a
power cable, or one of your pedals malfunctions, ISO-5 will turn off the power to only that pedal. All other outputs will
continue to function normally with no long-term damage.
Pedal Power IS0-5 Specifications
Input
Detachable IEC connector:
230V 50/60Hz (Europe/Australia model)
Output
5.5x2.1mm barrel connectors - center negative
Short circuit protected
9VDC (3) - 100mA
9/12VDC - 300mA
18VDC - 100mA
Included Cables
5.5x2.1mm right angle barrel connectors (4)
5.5x2.1mm straight barrel connectors (1)
5.5x2.5mm “red” barrel (1)
3.5mm mini plug (1)
Physical
4.9" wide x 3.4" deep x 1.8" tall (123 x 85 x 45 mm)
Weight: 1.24 lbs. (0.56 kg)
Special
Toroidal power transformer
|
| VLPPM |

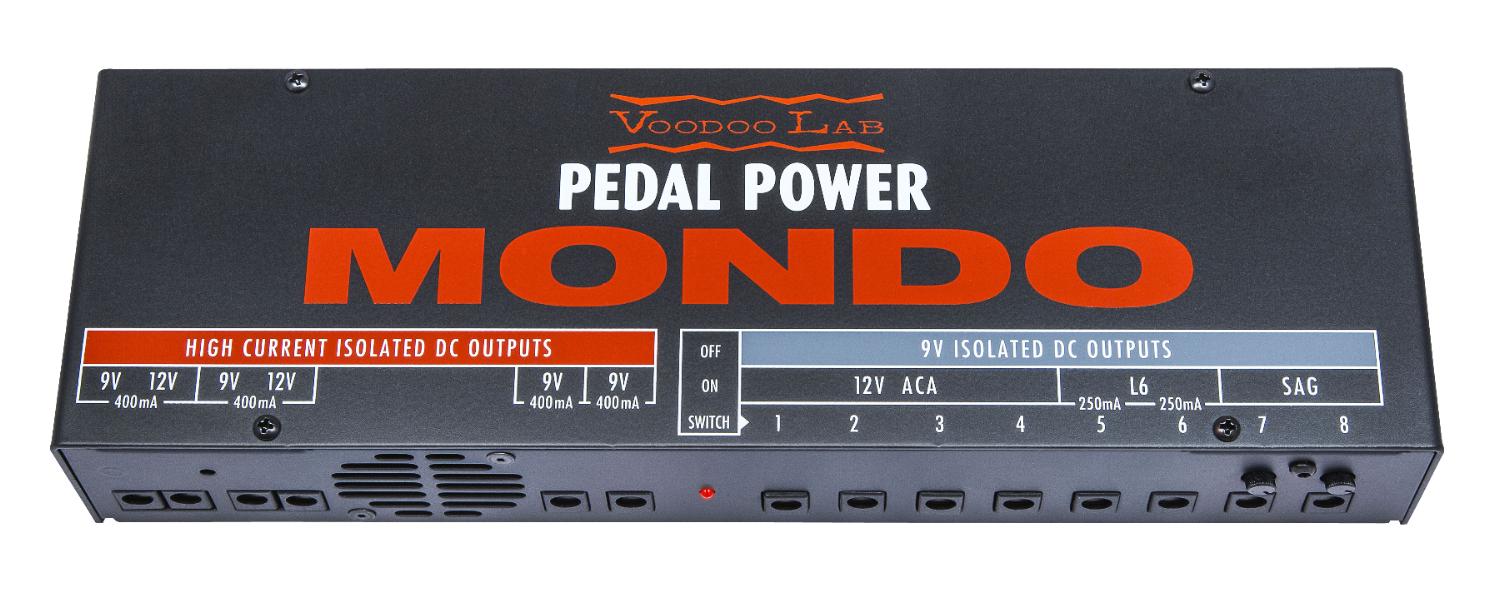

Voodoo Lab Pedal Power Mondo |
|
Pedal Power MONDO is a high-current capable power supply that can power the larget and most diverse pedaboards.
From digital power-hungry effects like those from Strymon, Eventide, Line 6, TC Electronic and more, plus compatability with all
standard 9-volt battery stompboxes, MONDO is perfect for large to gigantic pedalboards.
Features 12 completely isolated, filtered, and regulated output sections that will keep your pedals dead quiet and free from
high-frequency noise that occurs with digital ''switching'' power supplies.
Pedal Power MONDO also features an internal thermometer that controls a silent fan keeping the unit cool even under the most adverse
heat conditions of outdoor festival stages.
Even with poor AC line conditions, it delivers clean, consistent power. Handmade in the USA using the finest components,
Pedal Power MONDO was designed to meet and exceed the needs of our most demanding professional users.
Pedal Power MONDO features:
12 isolated outputs sections eliminate ground loops and hum
All outputs compatible with 9V battery operated pedals
6 outputs high-current capable for modern digital effects
Powers Strymon, Eventide, Line 6, Boss Twin, TC Nova and more
2 outputs with Sag simulate low battery
Toroidal transformers and linear regulation for lowest possible noise
Includes cables and detachable AC line cord
Courtesy AC outlet
Engineered and handmade in the USA
|
| VLPPX4 |

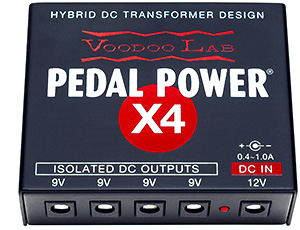

Voodoo Lab Pedal Power X4 |
|
Pedal Power X4 is a professional isolated power supply for up to four battery operated or high current DSP effects.
Housed in an ultra-compact aluminum chassis, the virtually weightless X4 mounts to even the smallest pedalboards, including Voodoo Lab Dingbat TINY and Pedaltrain® Nano.
Pedal Power X4 delivers the pure and reliable power necessary for pedals to perform and sound their very best - all with zero added noise.
Pedal Power X4 can be powered from its included AC adapter or from any 12V 400mA Pedal Power output, adding 4 isolated outputs to the power supply.
Pedal Power X4 conveniently operates at any mains voltage for international touring.
Pedal Power X4 features:
Four isolated 9V outputs
Delivers a total of 1000mA to handle high current DSP effects (500mA max per output)
Ultra-compact design easily mounts to the smallest pedalboards
Unique DC transformer topology, linear regulation, and multi-pole filtering eliminate any trace of noise
Includes power cables and 3M Dual Lock for mounting
Universal input voltage power adapter with detachable AC line cord
Powers from AC adapter (included) or any 12V 400mA Pedal Power output
Made in the U.S.A.
|
|
