VooDoo Lab |
| Product Code |
Description |
| VLAS |

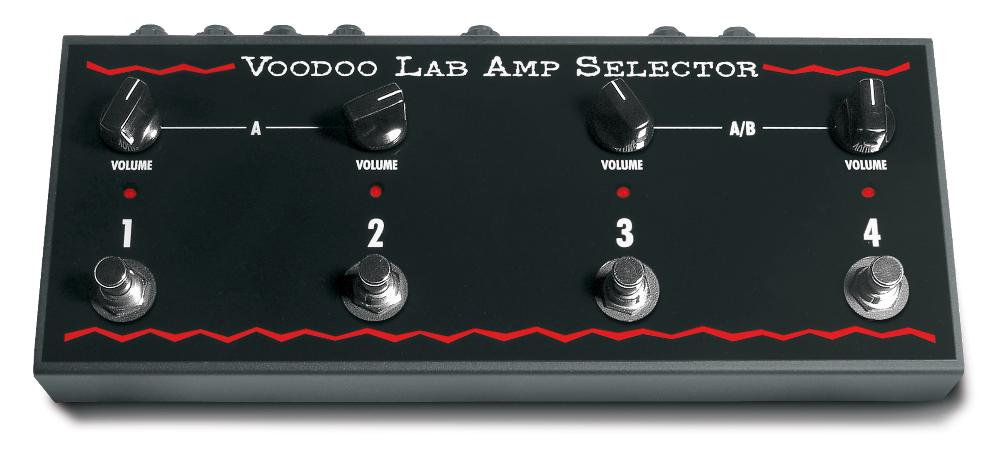

Voodoo Lab Amp Selector |
|
The Voodoo Lab Amp Selector is the ultimate stand-alone tool for switching your guitar into multiple amplifiers.
It lets you use up to four amps simultaneously without added hum or loss of tone.
You can switch between or layer amps in any combination.
The switching is absolutely silent with no clicks or pops.
The Amp Selector fulfills several indispensable real world applications for guitarists.
Each of the outputs can be directly switched, allowing you to layer any combination of amps simultaneously.
It can also be configured as an A/B/C/D box for selecting between up to four amplifiers with a single button press.
The Amp Selector features a buffered tuner or split output for slaving additional devices without loading down your
pickups or muddying your tone.
A second input can be used for a stereo signal path, or to switch two instruments into different pairs of amplifiers.
|
| VLCM |

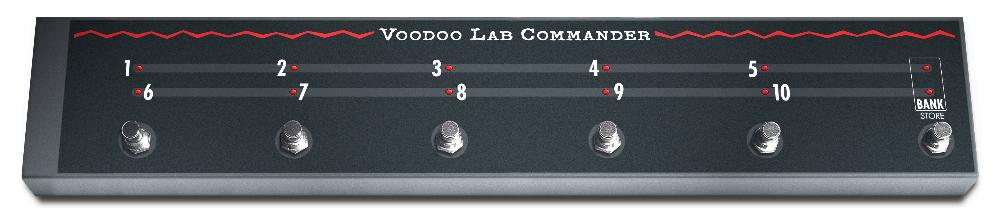

Voodoo Lab Commander |
|
Voodoo Lab's Commander can control an unlimited number of Pedal Switcher units allowing you to store combinations of pedals.
"With a single footswitch, you can go from a distorted lead with delay, to straight guitar-cable-amp tone without ever missing a note,"
said Fiden.
Commander features 10 user customizable presets and is phantom powered by the Pedal Switcher.
"With Pedal Switcher and Commander, you can build your ultimate pedalboard and sound better, stomp less, and play more!".
Features:
10 user customizable presets
5 preset access switches (plus bank up/down)
Phantom powered by Pedal Switcher
Controls an unlimited number of Pedal Switcher units
Multiple Commanders can be used for changing presets from an alternate stage position
MIDI In/out
|
| VLCS |

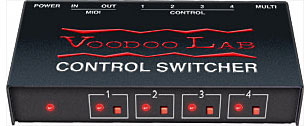

Voodoo Lab Control Switcher |
|
Add MIDI automation easily to any channel switching amp!
Switch channels on multiple amps and easily automate any non-MIDI functions with Control Switcher.
Using a Commander or Ground Control Pro, Voodoo Lab’s new Control Switcher gives you instant
MIDI programmability for controlling all footswitchable amp functions including channel switching, reverb, boost, EQ, loop and more.
Features 4 completely isolated relays with front panel instant access buttons, separate 1/4” mono outputs and a multi-DIN connector. >br>
Runs off a standard 9V power supply and is compact enough to mount behind an amp, inside a rack, or on a pedalboard.
Dimensions are 15.5 cm wide x 7.75 cm deep x 3 cm height.
Control Switcher Features:
4 isolated relay controls
Front panel instant access buttons
Separate 1/4" mono jacks
Multi-DIN connector for modern amps
Controls any footswitch function
Phantom powered by GCX or Pedal Switcher via MIDI cable
Works with Program and Control changes
Hand built in the U.S.A.
|
| VLGCP |

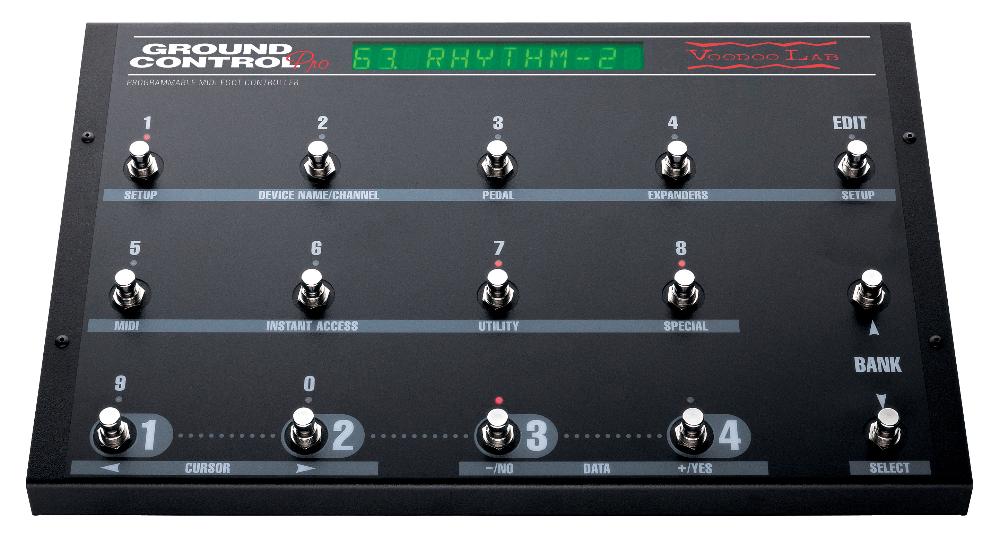

Voodoo Lab Ground Control Pro |
|
Ground Conttrol ProGet total control over your MIDI and non-MIDI rack effects,
stompboxes, amp selection, channel switching, and more!
Imagine being able to instantly reconfigure your entire rig with the touch of a single button.
Now you can! And, you aren’t limited to just MIDI processors.
With the addition of a GCX Guitar Audio Switcher, you can also control all your stompbox and rack effects,
select amp channels, and more.
The Ground Control Pro can simultaneously control up to 8 different MIDI devices, each on their own channel.
And, you can assign 8 of its buttons for instant access of GCX loops and processor functions.
This gives you stompbox style control over your processor or modeling amp’s internal effects.
The finest full-featured MIDI foot controller available, the Ground Control Pro is compatible with all MIDI controlled devices,
and delivers the flexibility, ease-of-use, and rugged reliability necessary to meet the needs of the most
demanding professional players.
Whether you are controlling a refrigerator sized rack, using a modeling amp, or just a single processor,
the Ground Control Pro is the perfect choice for all of your performance needs.
Ground Control Pro features:
Simultaneous control of up to 8 MIDI devices
8 assignable instant access switches
Controls up to 4 GCX Guitar Audio Switchers
Bright, stage-friendly alphanumeric display
Name each preset
Use volume/expression pedals for real-time control of
your sound via MIDI continuous controller messages
Hand built in the USA
Dimensions: 42.5 cm wide x 27.5 cm deep x 6.25 cm max height
|
| VLGCX |
Voodoo Lab GCX Audio Switcher |
|
Add true bypass to any stompbox or rack effect in your rig!
Get total control over your pedals, rack effects, amp & channel switching and more
with the GCX Guitar Audio Switcher.
You can use each of the eight loops for true bypass effect switching, A/B switching to select amps and preamps,
or to control any type of footswitch function such as amp channel switching.
GCX loops have no active circuitry, and use the finest gold relays sealed in nitrogen,
so your tone will stay pure and dynamic no matter what kind or how many effects you use.
Combine the GCX Guitar Audio Switcher with a Ground Control Pro to form a complete switching system that
has been the touring and recording pro’s choice for over 15 years!
GCX Guitar Audio Switcher Features:
8 true bypass audio loops
2 front-to-back feedthroughs
Choose between buffered and passive inputs
A/B switching to select amp and preamps
Controls any footswitch function
Phantom powers Ground Control Pro via MIDI cable
Hand built in the U.S.A.
|
| VLGCXSU |
Voodoo Lab GCX Stereo Upgrade |
|
GCX Stereo upgrade.
|
| VLHEX |
Voodoo Lab HEX Audio Loop Switcher |

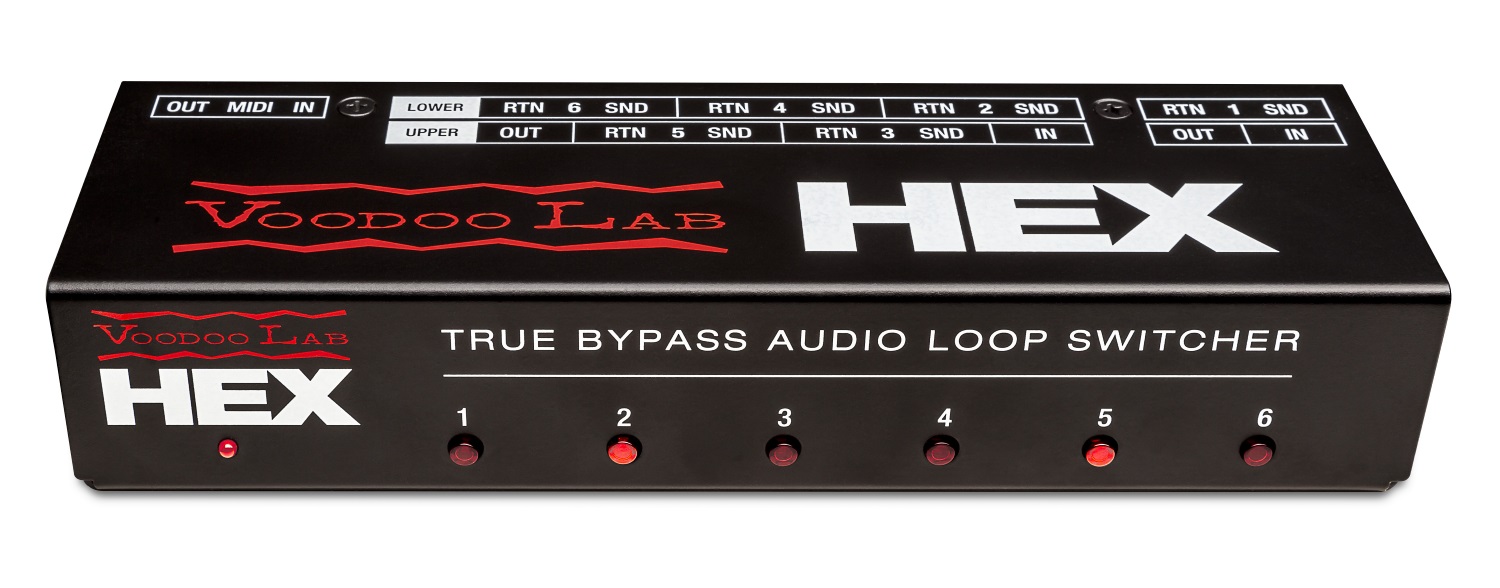

Voodoo Lab HEX Front

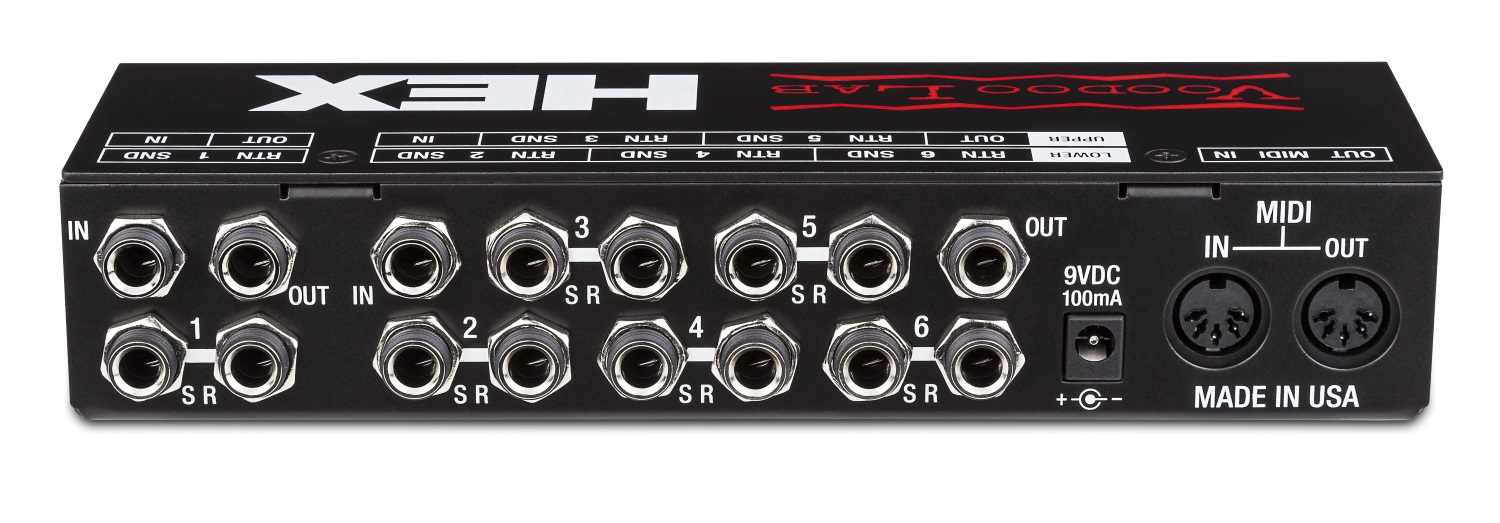

Voodoo Lab HEX Back
|
HEX™ is a true bypass audio switcher in a new compact format.
A single unit can easily be placed on a rack shelf with pedals, mounted under most Pedaltrain pedalboards, or 2 units can be combined giving you 12 audio loops in a single 19'' rack space.
Built with the finest gold relays sealed in nitrogen, your tone will stay pure and dynamic no matter what kind or how many effects you use.
HEX includes 6 true bypass loops, with loop number 1 being completely independent to allow for various tasks like A/B switching, amp channel switching, and more.
And, HEX features our Quiet Switching™ output buffer that kills pops and clicks, while making your final output tone better and more consistent regardless of length and type of cable.
HEX True Bypass Audio Loop Switcher features:
6 true bypass audio loops using the finest gold contact relays
Instantly recall preset combinations of effects
Isolated loop for A/B, amp channel select and remote tap tempo
Compact size easily fits on rack shelves and pedalboards
Rackmount 2 units into a single space with optional bracket
Compatible with our Ground Control Pro or any MIDI controller
Output buffer preserves tone even with long cable run to amp
Advanced Quiet Switching technology for lowest possible noise
Conveniently power from any Pedal Power 9VDC output
Legendary Voodoo Lab quality and reliability!
Hand Made in the U.S.A
|
| VLPS |
Voodoo Lab Pedal Switcher |
|
Get the effects you want without trashing your tone!
On a traditional pedalboard, even when the effects are off, your signal still goes through numerous tone-trashing buffers,
solid-state switches and patch cables. Pedal Switcher™ uses 4 true bypass loops to send your signal only to the pedals you’re using.
Built with the finest gold relays sealed in nitrogen, your tone will stay pure and dynamic no matter what kind or how many pedals you use.
With Pedal Switcher ™, you can use all those great classic and modern stompboxes without destroying that pure “straight to amp” sound.
Now you have the freedom to use any pedals you want, and never have to worry that the buffer in your overdrive is killing your vintage fuzz!
Pedal Switcher™ features 4 instant access switches, buffered and non-buffered inputs,
and a TRS insert for putting devices like a volume pedal between effects.
Loops can also be used as a mute for silent tuning onstage, and A/B amp switching.
Add a Commander and you can control an unlimited number of Pedal Switcher units allowing you to store combinations of pedals.
Check out Commander here.
Features:
4 True Bypass audio loops
4 Instant access on/off switches
A/B Amp selector (loop 4)
Loops can be used for signal mute and silent tuning
TRS Insert (between loops 3&4)
Programmable presets via Commander
Fully compatible with Ground Control Pro and GCX Audio Switcher
MIDI In/out
|
| VLPSPX-8 |

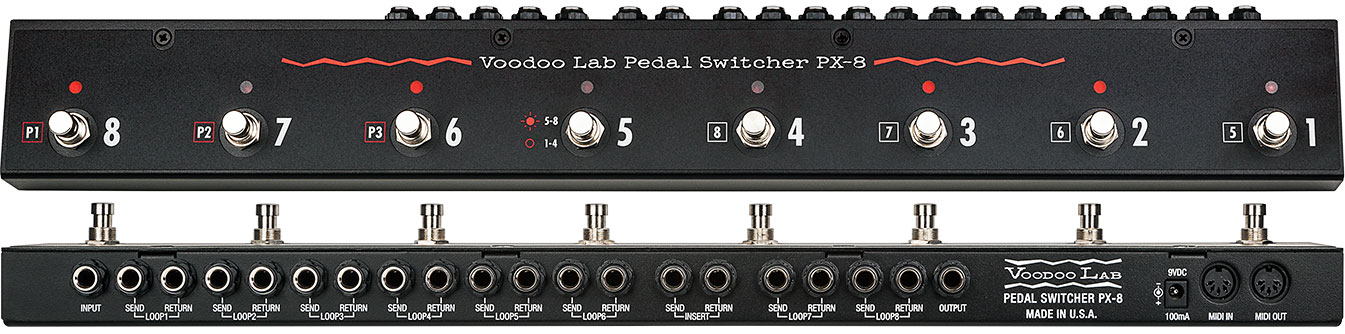

Voodoo Lab Pedal Switcher PX-8 |
|
Pedal Switcher PX-8 will simplify and organize your effects pedal life and improve your tone at the same time.
But it can do a lot more than that, depending on what your needs are. At its heart, PX-8 is an 8-loop true-bypass audio switcher that gives you convenient,
button-tap instant access to your guitar effects pedals.
The loops use the finest gold contact relays sealed in nitrogen for absolute transparency and pristine sound quality.
If a loop isn't engaged, that pedal, with all its inherent "character" (as in noise), is totally out of your signal path.
Multiply that by eight or more stompboxes and the sonic benefits are obvious.
Lurking beneath PX-8's surface, however, are many more powerful, creativity-boosting features, including the ability to store preset loop combinations,
send MIDI commands, and be an integral part of a larger switching system.
If you simply want to make your pedalboard neater and sound better, PX-8 will do that.
If you want to devise a state-of-the-art effects switching system, PX-8 can get you there as well.
Features:
8 true bypass audio loops using the finest gold contact relays8 true bypass audio loops using the finest gold contact relays
One-button access to clean, rhythm & lead effect combinations
Instantly recall 128 preset combinations of effects via MIDI
Compatible with Ground Control Pro or any MIDI controller
Insert point between loops 6 & 7 for volume pedals and more
Output buffer preserves tone even with long cable run to amp
Quiet Switching™ technology for lowest possible noise
Conveniently power from any Pedal Power 9VDC output
Legendary Voodoo Lab quality and reliability
Hand Made in the U.S.A.
|
|
